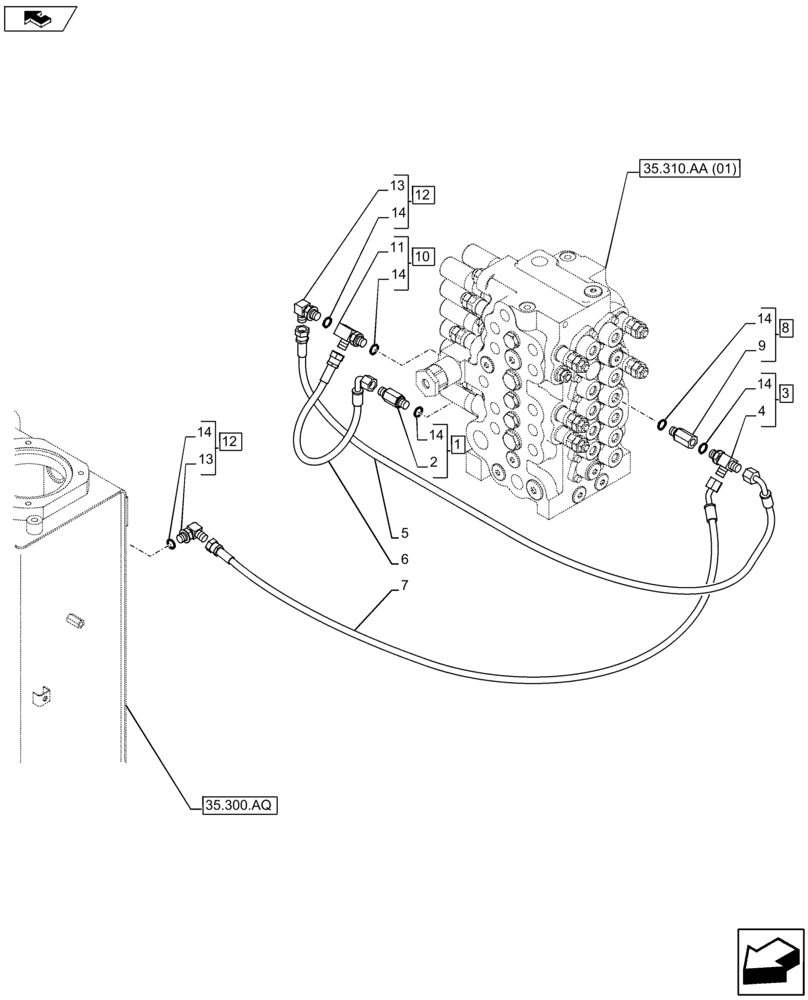

Запчасти Case CX80C (35.310.AJ[03]) - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

162554A1

FITTING

Assy, Incl 2, 14

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

159497A1

TEE

Assy, Incl 4, 14

1шт.

4

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

5

KHJ2088

HOSE

1шт.

6

KHJ2351

HOSE

1шт.

7

KHJ22010

HOSE ASSY.

1шт.

8

162525A1

STUD

Assy, Incl 9, 14

1шт.

9

NSS

NOT SOLD SEPARAT

Stud, Incl in 8

1шт.

10

KHJ2773

TEE

Assy, Incl 11, 14

1шт.

11

NSS

NOT SOLD SEPARAT

Tee, Incl in 10

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
