(35.106.AO [05]) - PUMP OIL LINES FITTING

Запчасти Case CX75C SR (35.106.AO [05]) - PUMP OIL LINES FITTING (35) - HYDRAULIC SYSTEMS

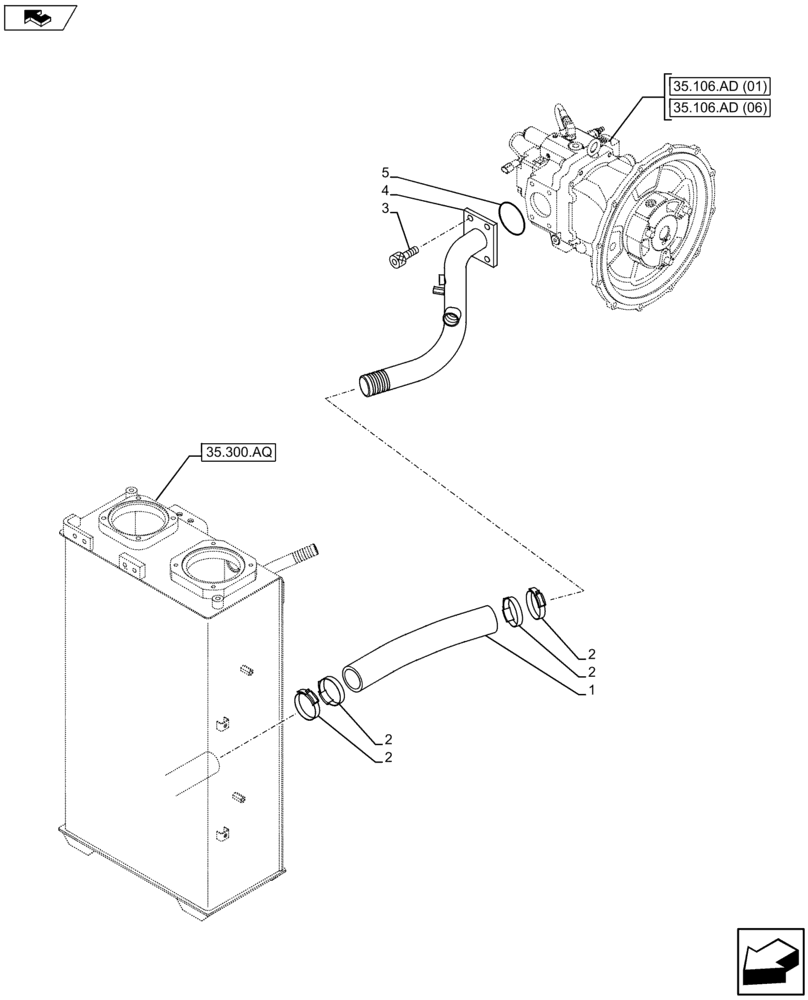

Схема запчастей Case CX75C SR - (35.106.AO [05]) - PUMP OIL LINES FITTING (35) - HYDRAULIC SYSTEMS
5
3
1
35.106.ad (06)
35.106.ad (01)
35.300.aq
2
2
2
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

167519A1

HOSE

1шт.

2

165793A1

COLLAR

4шт.

3

861-12025

HEX SOC SCREW,M12 x 25mm, Cl 12.9

4шт.

4

KAJ14740

HYD TUBE

1шт.

5

154681A1

O-RING

1шт.
