Запчасти Case CX75C SR (35.106.AO[02]) - PUMP OIL LINES AND FITTINGS (35) - HYDRAULIC SYSTEMS

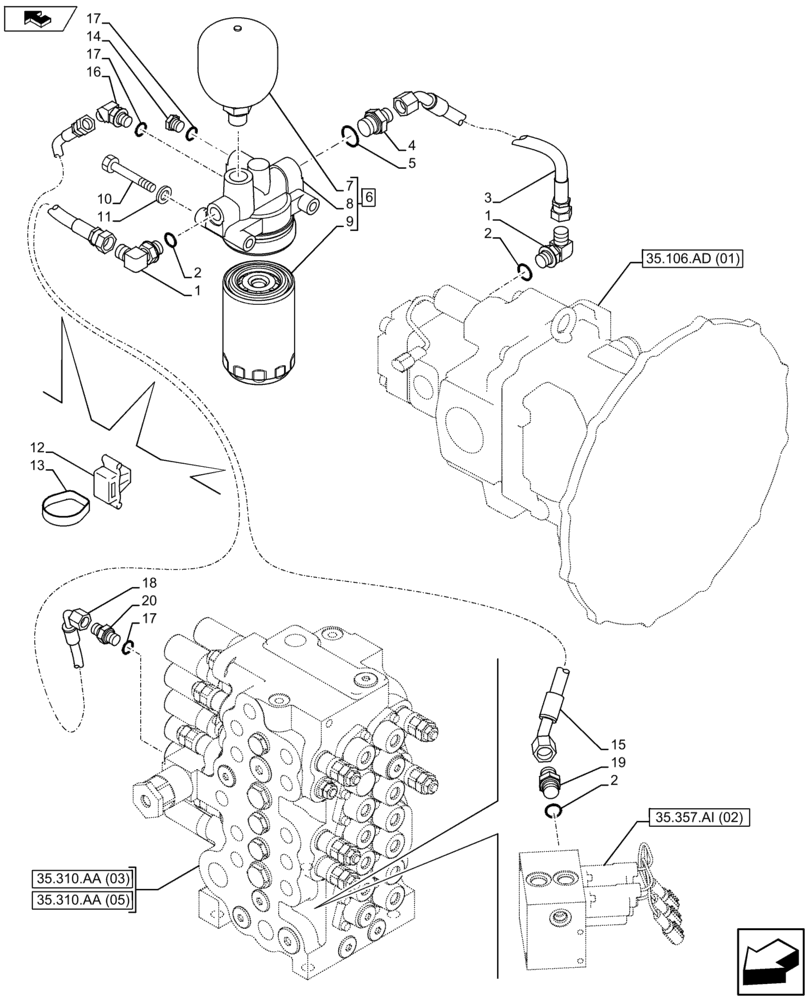

![Схема запчастей Case CX75C SR - (35.106.AO[02]) - PUMP OIL LINES AND FITTINGS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5145083.png)
19
16
3
10
8
35.106.ad (01)
35.310.aa (03)
17
35.310.aa (05)
17
12
5
17
18
1
13
1
35.357.ai (02)
20
7
14
11
2
4
15
9
2
6
2
№
Артикул
Название
Примечание
Количество
1
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
2шт.
2
154475A1
O-RING
3шт.
3
KHJ28000
HOSE
1шт.
4
161084A1
ADAPTER
1шт.
6
KHJ17711
ACCUMULATOR
Assy, Incl 7 - 9
1шт.
7
KHJ27610
ACCUMULATOR
1шт.
8
KHJ17720
FILTER HEAD
1шт.
10
814-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8
2шт.
11
150409A1
WASHER
2шт.
12
KHR10220
MOUNTING CLIP
3шт.
13
150496A1
MOUNTING CLIP
3шт.
14
159002A1
PLUG
1шт.
15
KHJ28040
HOSE
1шт.
16
150933A1
ELBOW
1шт.
17
154467A1
O-RING,10.8mm ID x 2.4mm Width
3шт.
18
KHJ2092
HOSE
1шт.
19
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
1шт.
20
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
1шт.
