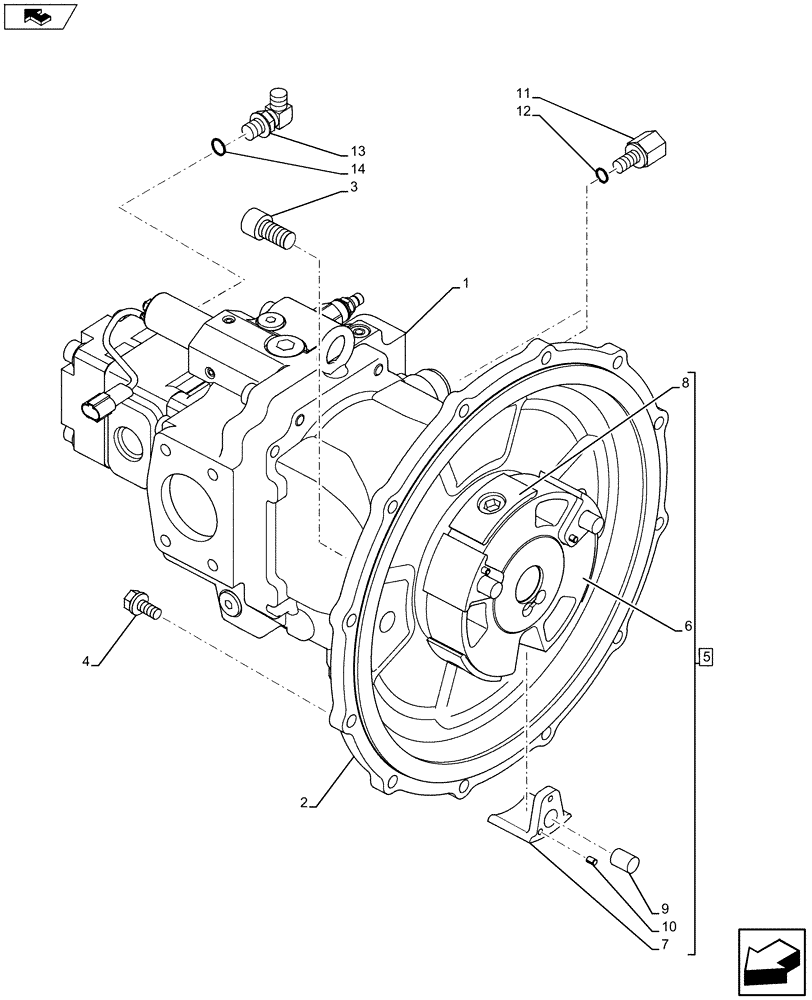

Запчасти Case CX75C SR (35.106.AD[01]) - VAR - 461863 - PUMP (35) - HYDRAULIC SYSTEMS

1

KAJ11810

HYDRAULIC PUMP

1шт.

2

KAJ11840

FLANGE

1шт.

3

108R018Y040R

BOLT

2шт.

4

166347A1

BOLT,Sems, M10 x 30mm

14шт.

5

KAJ5015

KIT

Assy, Incl 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Element, Incl in 5

1шт.

7

NSS

NOT SOLD SEPARAT

Insert, Incl in 5

3шт.

8

NSS

NOT SOLD SEPARAT

Insert, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt, Incl in 5

3шт.

10

NSS

NOT SOLD SEPARAT

Pin, Spring, Incl in 5

3шт.

11

KHJ18180

STUD

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

14

154475A1

O-RING

1шт.
