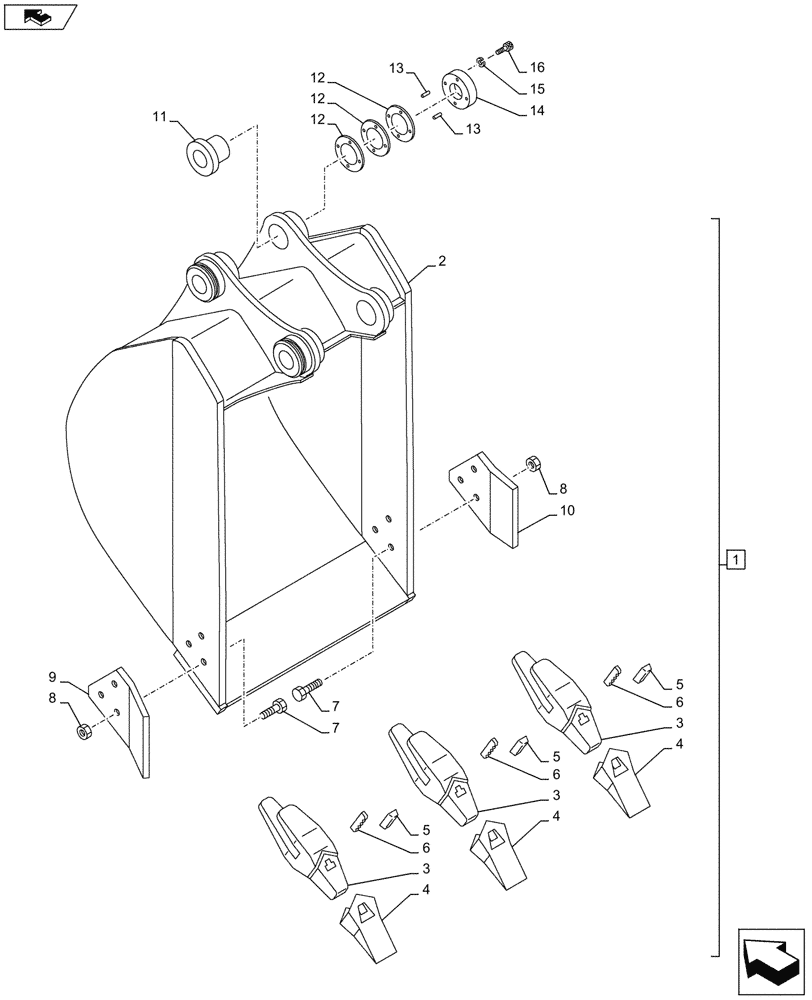

Запчасти Case CX75C SR (84.100.AB[01]) - VAR - 461439 - BUCKET (L=220MM) ANZ (84) - BOOMS, DIPPERS & BUCKETS

1

KAV20820

BUCKET

ASSY, Incl 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

KAV13250

ADAPTER

3шт.

4

KMV0816

TOOTH

3шт.

5

KHV11310

LOCK

3шт.

6

KHV11300

PIN

3шт.

7

626-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

6шт.

8

162R020VR

NUT

6шт.

9

KAV2062

KNIFE

1шт.

10

KAV2061

KNIFE

1шт.

11

KAV0774

BUSHING

1шт.

12

KAV0776

SHIM

6ARшт.

13

335B080T020

DOWEL

2шт.

14

KAV0775

PLATE

1шт.

15

112309A1

LOCK WASHER

4шт.

16

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.
