(84.100.008) - BUCKET (L=750MM), EU MODELS

Запчасти Case CX75C SR (84.100.008) - BUCKET (L=750MM), EU MODELS (84) - BOOMS, DIPPERS & BUCKETS

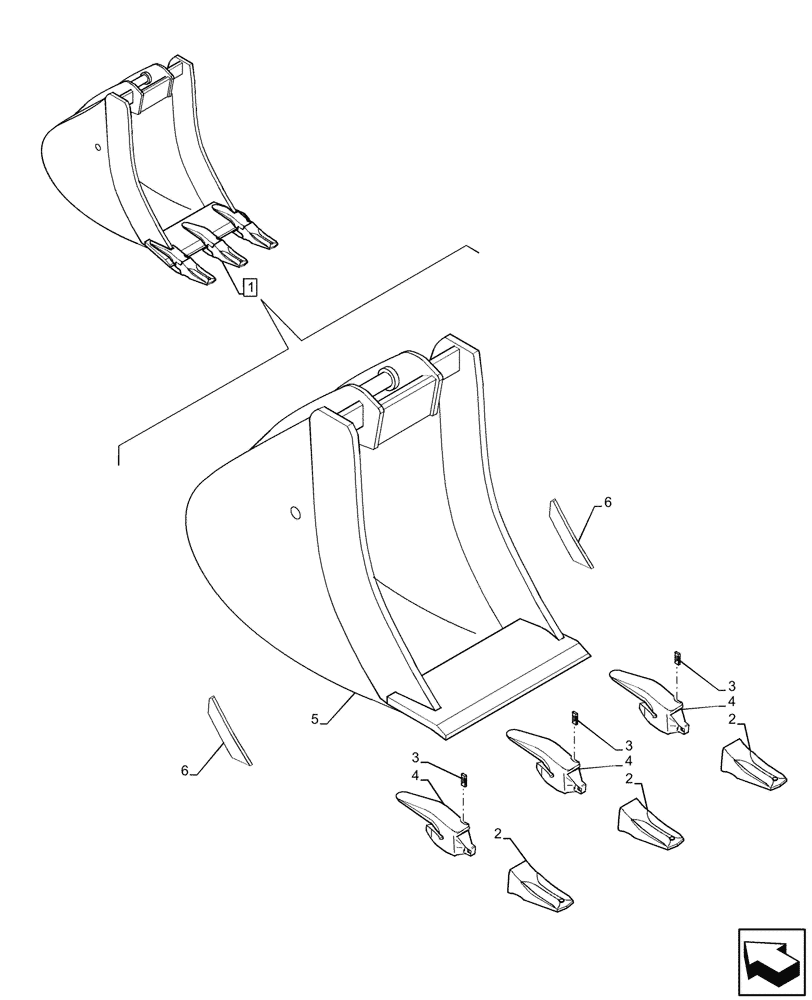

Схема запчастей Case CX75C SR - (84.100.008) - BUCKET (L=750MM), EU MODELS (84) - BOOMS, DIPPERS & BUCKETS
6
3
4
1
6
3
4
4
5
2
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84355147

BUCKET

750mm, ASSY, Incl 2 - 6

1шт.

for Quick Coupler

1шт.

2

84216218

BUCKET TOOTH

4шт.

3

84168132

BUCKET TOOTH KEY

4шт.

4

84335008

BUCKET TOOTH SHANK

4шт.

5

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Side Cutter, incl in 1

2шт.
