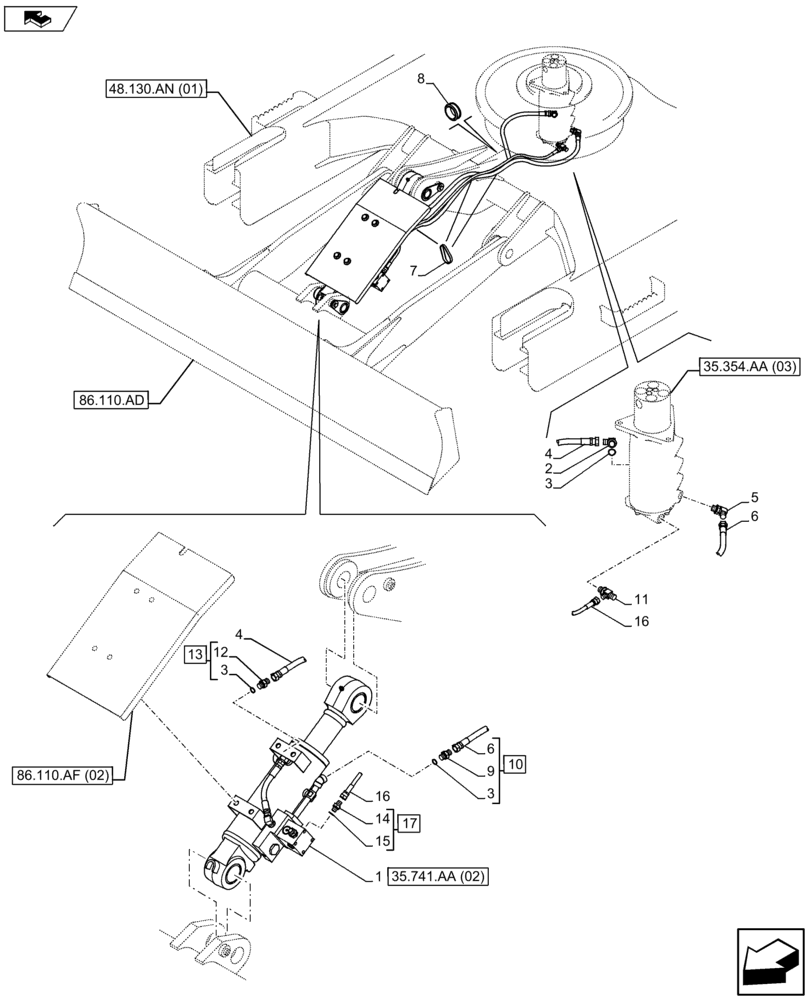

Запчасти Case CX75C SR (35.741.AJ[02]) - VAR - 461559, 481064 - DOZER BLADE CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

KAV18610

HYDRAULIC CYLINDER

1шт.

2

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

3

154475A1

O-RING

3шт.

4

KAV2096

HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm

1шт.

5

157937A1

ELBOW

1шт.

6

KAV21430

HYDRAULIC HOSE

1шт.

7

150067A1

MOUNTING CLIP

3шт.

8

KEJ0422

GROMMET

1шт.

9

NSS

NOT SOLD SEPARAT

Adapter, Incl in 10

1шт.

10

KRJ1231

ADAPTER

Assy, Incl 3, 9

1шт.

11

163422A1

TEE

1шт.

12

NSS

NOT SOLD SEPARAT

Adapter, Incl in 13

1шт.

13

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Assy, Incl 3, 12

1шт.

14

NSS

NOT SOLD SEPARAT

Adapter, Incl in 17

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

KAV2481

HOSE

1шт.

17

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 14 - 15

1шт.
