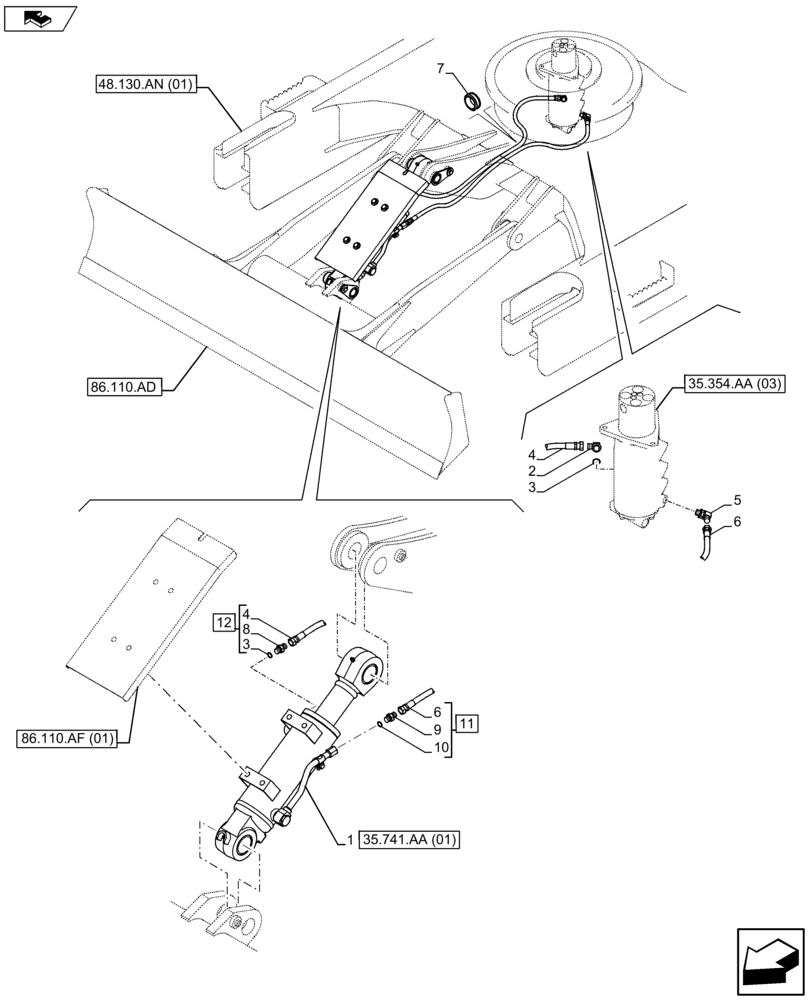

Запчасти Case CX75C SR (35.741.AJ[01]) - DOZER BLADE CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

KAV12980

HYDRAULIC CYLINDER

1шт.

2

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.

3

154475A1

O-RING

2шт.

4

KAV2096

HYDRAULIC HOSE,9.50 mm ID x 1350.00 mm

1шт.

5

157937A1

ELBOW

1шт.

6

KAV21430

HYDRAULIC HOSE

1шт.

7

KEJ0422

GROMMET

1шт.

8

NSS

NOT SOLD SEPARAT

Adapter, Incl in 12

1шт.

9

NSS

NOT SOLD SEPARAT

Adapter, Incl in 11

1шт.

10

150031A1

O-RING,10mm ID x 24mm OD

1шт.

11

KRJ1231

ADAPTER

Assy, Incl 9 - 10

1шт.

12

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Assy, Incl 3, 8

1шт.
