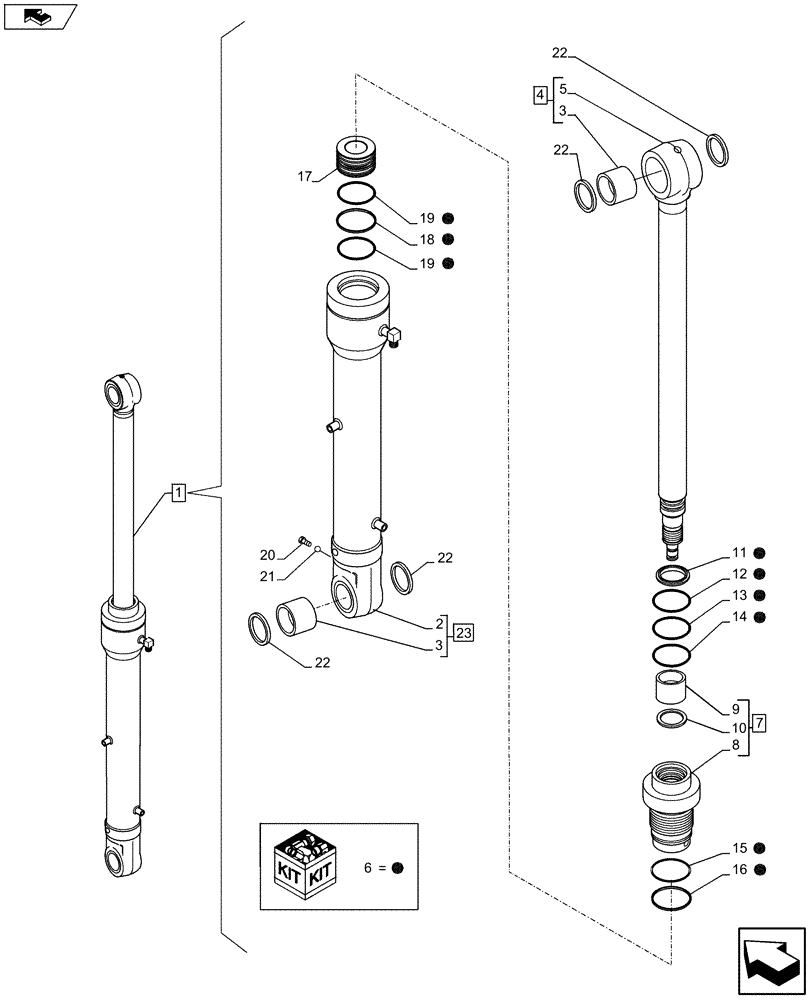

Запчасти Case CX75C SR (35.739.AA) - VAR - 461025 - SWING CYLINDER (35) - HYDRAULIC SYSTEMS

1

KAV2442

HYDRAULIC CYLINDER

Assy, Incl 2 - 6

1шт.

2

LR00921

HYD CYL SLEEVE

1шт.

3

166834A1

BUSHING

2шт.

4

LB00814

PISTON ROD

Assy, Incl 3 - 5

1шт.

5

LB00815

PISTON ROD

1шт.

6

LZ00472

SEAL KIT

Repair Kit, Incl 11 - 16, 18 - 19

1шт.

7

LU00143

CYLINDER END CAP

Assy, Incl 8 - 10

1шт.

8

LU00144

CYLINDER END CAP

1шт.

9

LB00717

BACK-UP RING

1шт.

10

166883A1

RING, SNAP

1шт.

11

LE00938

SEALING RING

Incl in 6

1шт.

12

166789A1

SEALING RING

Incl in 6

1шт.

13

LAU0195

SEAL

Incl in 6

1шт.

14

154705A1

O-RING

Incl in 6

1шт.

15

LE00926

BACK-UP RING

Incl in 6

1шт.

16

154711A1

O-RING

Incl in 6

1шт.

17

LJ00888

JACK PISTON

1шт.

18

160825A1

SEALING RING

Incl in 6

1шт.

19

LE00736

RING

Incl in 6

2шт.

20

156222A1

SCREW

1шт.

21

155976A1

BALL

1шт.

22

166467A1

SEAL

4шт.

23

LR00920

HYD CYL SLEEVE

Assy, Incl 2 - 3

1шт.
