(35.738.AE[07]) - VAR - 461025, 481063 - HYDRAULIC LINE

Запчасти Case CX75C SR (35.738.AE[07]) - VAR - 461025, 481063 - HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

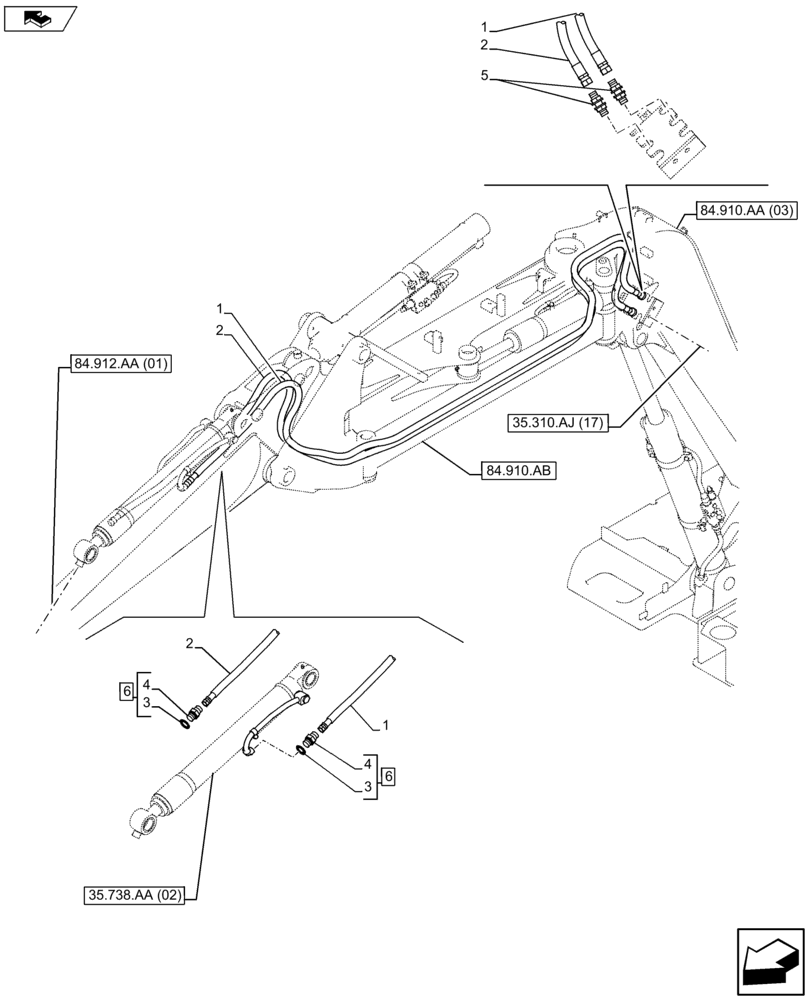

Схема запчастей Case CX75C SR - (35.738.AE[07]) - VAR - 461025, 481063 - HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
84.910.aa (03)
4
5
1
84.912.aa (01)
6
1
3
4
35.738.aa (02)
35.310.aj (17)
2
3
1
2
2
84.910.ab
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV21170

HYDRAULIC HOSE

1шт.

2

KAV21180

HYDRAULIC HOSE

1шт.

3

NSS

NOT SOLD SEPARAT

Adapter, Incl in 6

2шт.

4

154487A1

O-RING

2шт.

5

KHJ0507

ADAPTER

2шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Assy, Incl 3 - 4

2шт.

Выбрано товаров: 6
