(35.738.AE[05]) - VAR - 461025, 481062 - HYDRAULIC LINE

Запчасти Case CX75C SR (35.738.AE[05]) - VAR - 461025, 481062 - HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

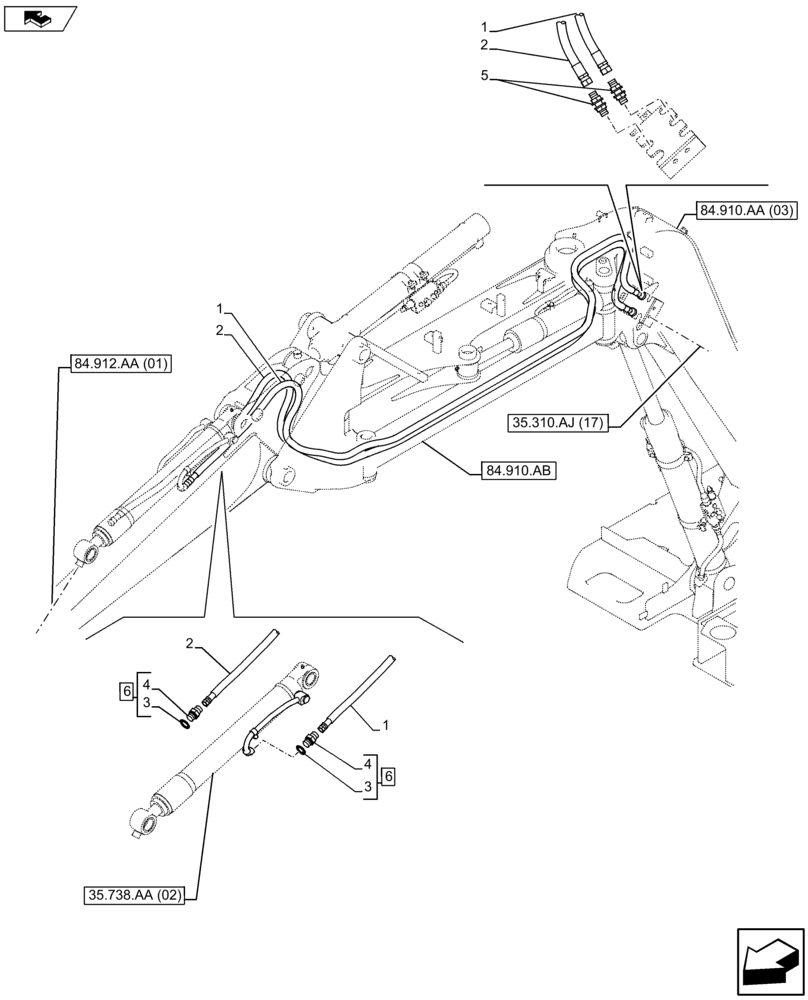

Схема запчастей Case CX75C SR - (35.738.AE[05]) - VAR - 461025, 481062 - HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
3
35.310.aj (17)
2
1
2
35.738.aa (02)
6
3
6
4
2
84.912.aa (01)
5
84.910.aa (03)
1
4
1
84.910.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV20570

HYDRAULIC HOSE

1шт.

2

KAV20580

HYDRAULIC HOSE

1шт.

3

NSS

NOT SOLD SEPARAT

Adapter, Incl in 6

2шт.

4

154487A1

O-RING

2шт.

5

KHJ0507

ADAPTER

2шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Assy, Incl 3 - 4

2шт.

Выбрано товаров: 6
