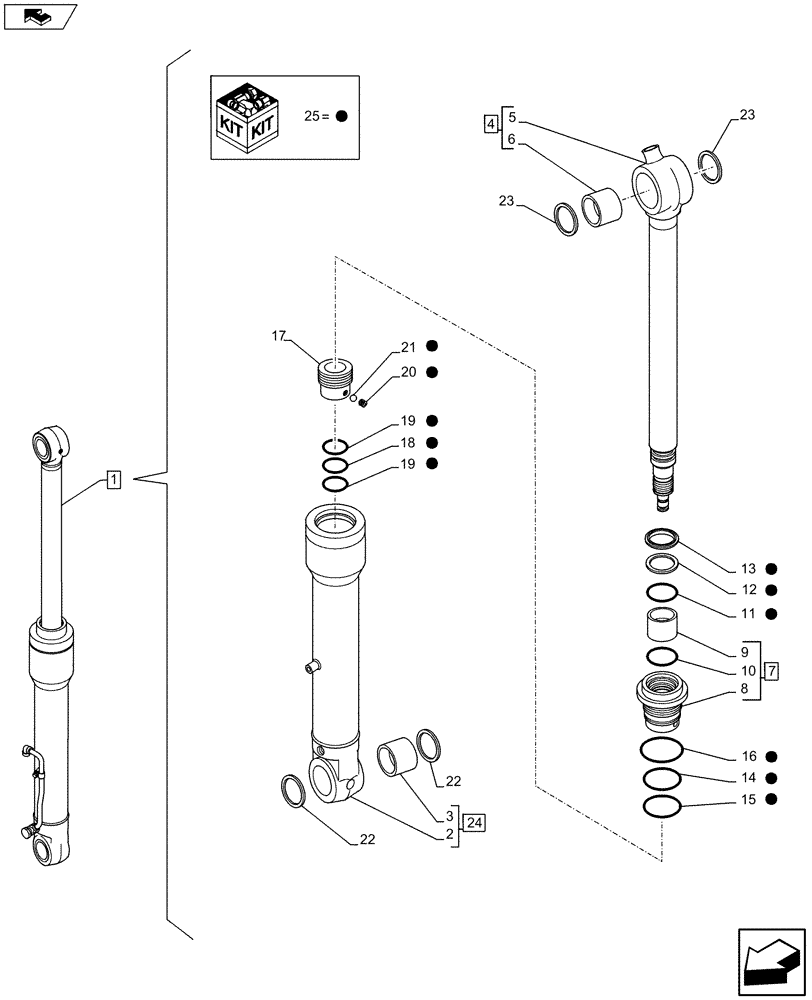

Запчасти Case CX75C SR (35.738.AA[01]) - VAR - 781172 - BUCKET CYLINDER (35) - HYDRAULIC SYSTEMS

1

KAV2440

BUCKET CYLINDER

Assy, Incl 2 - 25

1шт.

2

LR00915

HYD CYL SLEEVE

1шт.

3

166833A1

BUSHING

1шт.

4

LB00812

PISTON ROD

Assy, Incl 5 - 6

1шт.

5

LB00813

PISTON ROD

1шт.

6

166834A1

BUSHING

1шт.

7

LU00145

CYLINDER END CAP

Assy, Incl 8 - 10

1шт.

8

LU00147

CYLINDER END CAP

1шт.

9

LB00717

BACK-UP RING

1шт.

10

166883A1

RING, SNAP

1шт.

11

LE00938

SEALING RING

Incl in 25

1шт.

12

166789A1

SEALING RING

Incl in 25

1шт.

13

LAU0195

SEAL

Incl in 25

1шт.

14

154689A1

O-RING

Incl in 25

1шт.

15

LE00939

BACK-UP RING

Incl in 25

1шт.

16

154695A1

O-RING

Incl in 25

1шт.

17

LJ00891

JACK PISTON

1шт.

18

166819A1

SEALING RING

Incl in 25

1шт.

19

LE00940

GUIDE RING

Incl in 25

2шт.

20

156222A1

SCREW

1шт.

21

155976A1

BALL

1шт.

22

166466A1

SEAL

2шт.

23

166467A1

SEAL

2шт.

24

LR00914

HYD CYL SLEEVE

Assy, Incl 2 - 3

1шт.

25

LZ00473

SEAL KIT

Rapair Kit, Incl 11 - 16, 18 - 19

1шт.
