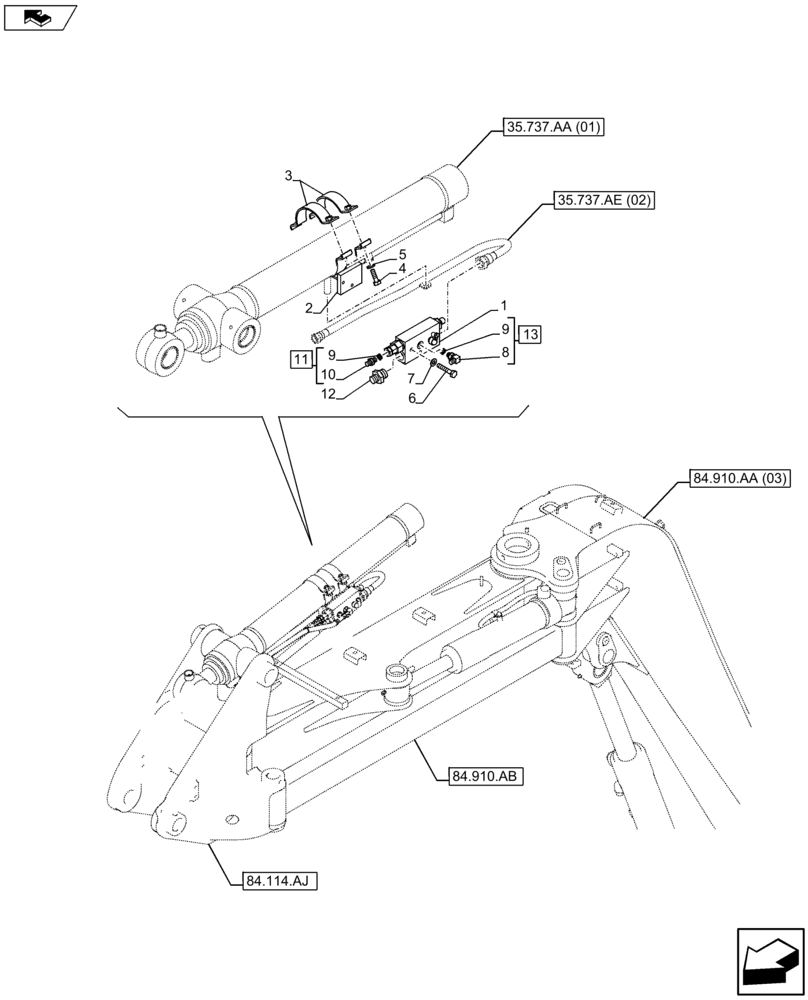

Запчасти Case CX75C SR (35.737.AY) - VAR - 461559, 461025, 481064 - ARM CYLINDER HOLDING VALVE (35) - HYDRAULIC SYSTEMS

1

KAJ17980

VALVE, PRESSURE CONT

1шт.

2

KAV2261

CLAMP

1шт.

3

168557A1

COLLAR

2шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

150409A1

WASHER

4шт.

6

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

9

154503A1

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

Adapter, Incl in 14

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 9 - 10

1шт.

12

168988A1

ADAPTER

1шт.

13

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 8 - 9

1шт.
