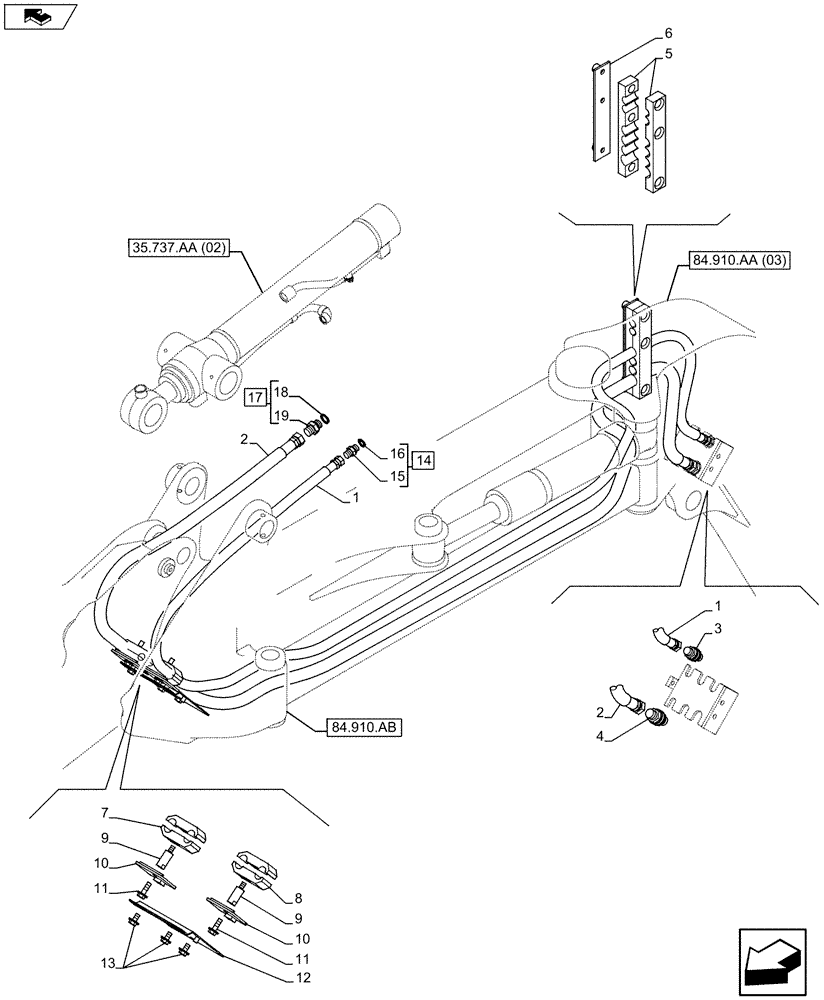

Запчасти Case CX75C SR (35.737.AE[04]) - VAR - 461025, 481062, 481063 - DIPPER CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

KAV20550

HYDRAULIC HOSE

1шт.

2

KAV20560

HYDRAULIC HOSE

1шт.

3

KHJ0507

ADAPTER

1шт.

4

KHJ0508

FITTING

1шт.

5

KAV2132

HOSE CLAMP

2шт.

6

KAV2134

BRACKET

1шт.

7

KAV2376

HOSE CLAMP

2шт.

8

KAV2379

HOSE CLAMP

2шт.

9

KAV2149

BOSS

2шт.

10

KAV2416

BRACKET

2шт.

11

162278A1

BOLT

2шт.

12

KAV2417

PLATE

1шт.

13

167893A1

BOLT

3шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Assy, Incl 15 - 16

1шт.

15

NSS

NOT SOLD SEPARAT

Adapter, Incl in 14

1шт.

16

154487A1

O-RING

1шт.

17

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 18 - 19

1шт.

18

154503A1

O-RING

1шт.

19

NSS

NOT SOLD SEPARAT

Adapter, Incl in 14

1шт.
