(35.737.AE[02]) - VAR - 461559, 461025, 481064 - DIPPER CYLINDER LINE

Запчасти Case CX75C SR (35.737.AE[02]) - VAR - 461559, 461025, 481064 - DIPPER CYLINDER LINE (35) - HYDRAULIC SYSTEMS

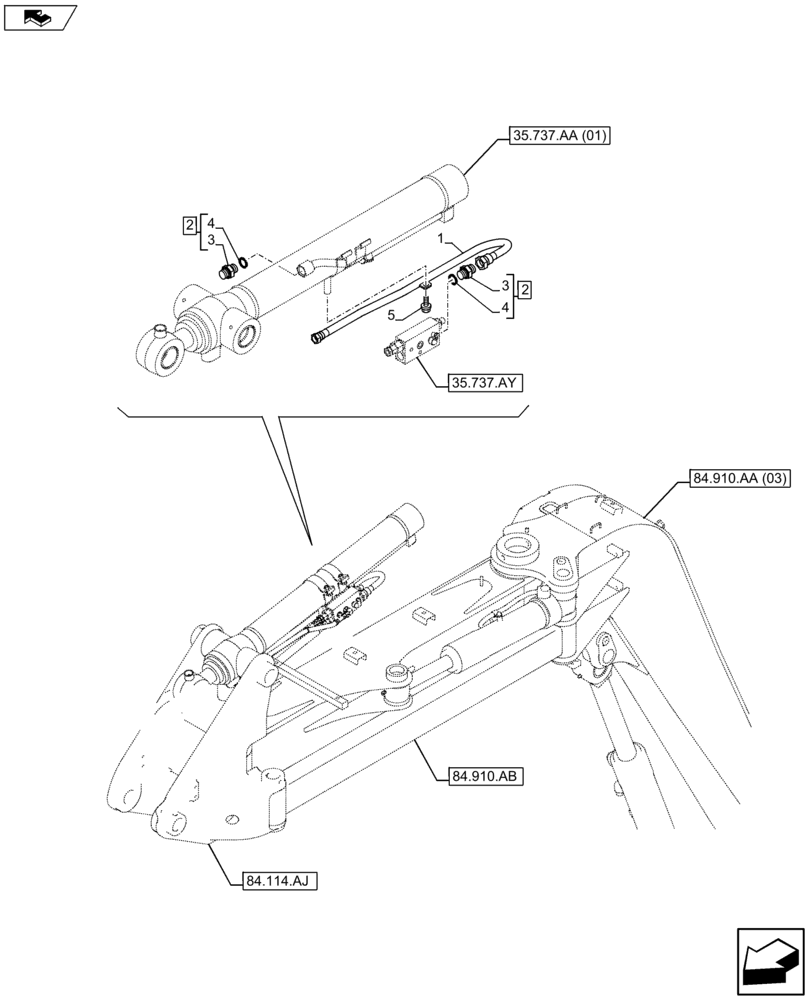

Схема запчастей Case CX75C SR - (35.737.AE[02]) - VAR - 461559, 461025, 481064 - DIPPER CYLINDER LINE (35) - HYDRAULIC SYSTEMS
4
84.910.ab
3
2
84.114.aj
2
5
3
35.737.aa (01)
35.737.ay
1
84.910.aa (03)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAV2244Y2

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 3 - 4

2шт.

3

NSS

NOT SOLD SEPARAT

Adapter, Incl in 1

2шт.

4

154503A1

O-RING

2шт.

5

166351A1

BOLT,Sems, M10 x 20mm

1шт.

Выбрано товаров: 5
