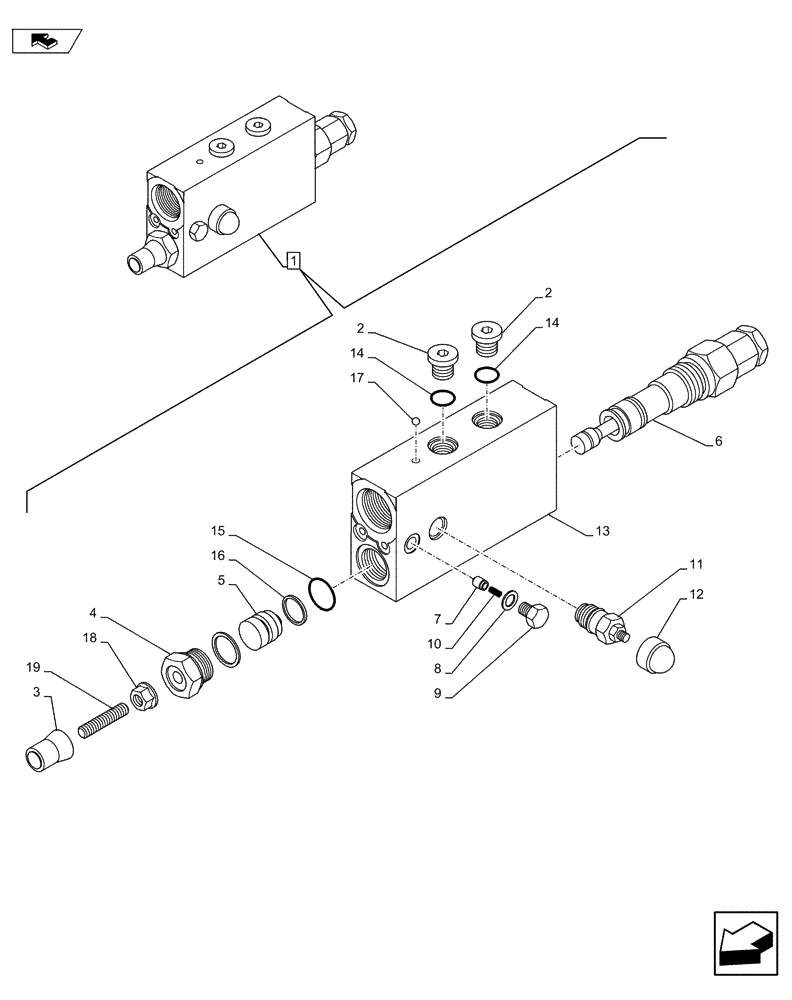

Запчасти Case CX75C SR (35.736.AG[03]) - VAR - 481064 - BOOM LIFTING CYLINDER HOLDING VALVE (35) - HYDRAULIC SYSTEMS

1

KAJ4596

SAFETY VALVE

Assy, Incl 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

3

LR01032

CAP

1шт.

4

LK007040

PLUG

1шт.

5

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

6

LH006650

SLEEVE

1шт.

7

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

8

LE01065

SEAL

1шт.

9

LV00033

SCREW

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

11

LJ01094

VALVE, PRESSURE RELI

1шт.

12

LR016830

CAP

1шт.

13

NSS

NOT SOLD SEPARAT

Manifold, Incl in 1

1шт.

14

LBQ5111

O-RING

2шт.

15

LE01028

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

4шт.

18

NSS

NOT SOLD SEPARAT

Lock, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.
