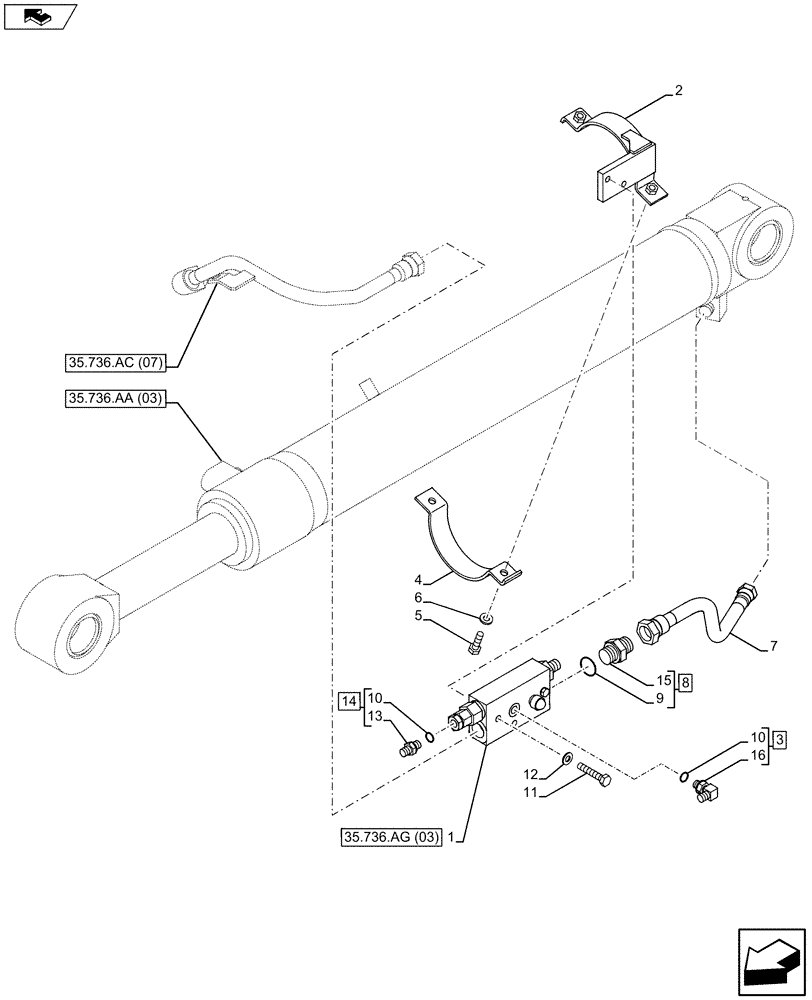

Запчасти Case CX75C SR (35.736.AG[02]) - VAR - 461559, 481064 - BOOM LIFTING CYLINDER HOLDING VALVE (35) - HYDRAULIC SYSTEMS

1

KAJ4596

SAFETY VALVE

1шт.

2

KAV14310

CLAMP

1шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 10, 16

1шт.

4

KAV14290

CLAMP

1шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

150409A1

WASHER

2шт.

7

KAV18580

HYD TUBE

1шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 9, 15

1шт.

9

154503A1

O-RING

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

11

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

NSS

NOT SOLD SEPARAT

Adapter, Incl in 3, 14

1шт.

14

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 10, 13

1шт.

15

NSS

NOT SOLD SEPARAT

Adapter, Incl in 8

1шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.
