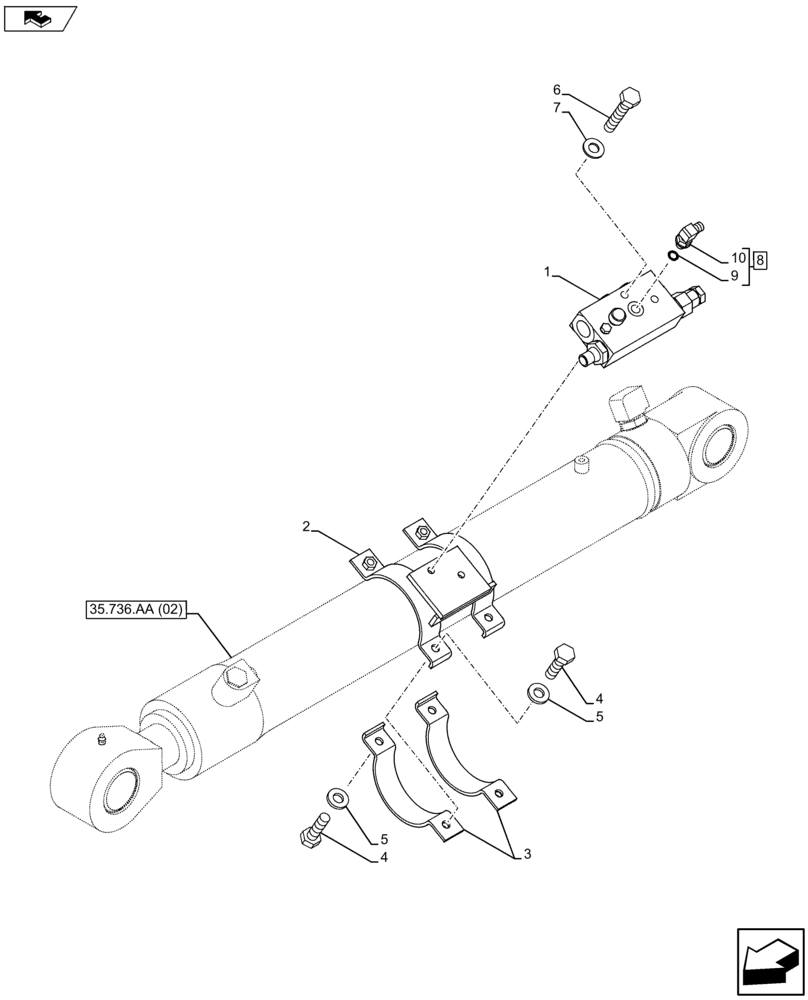

Запчасти Case CX75C SR (35.736.AG[01]) - VAR - 461559, 481064 - BOOM LIFTING CYLINDER HOLDING VALVE (35) - HYDRAULIC SYSTEMS

1

KAJ17980

VALVE, PRESSURE CONT

1шт.

2

KAV18830

CLAMP

1шт.

3

KAV18820

CLAMP

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

150409A1

WASHER

4шт.

6

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

, Start Serial:

1шт.

8

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 9 - 10

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.
