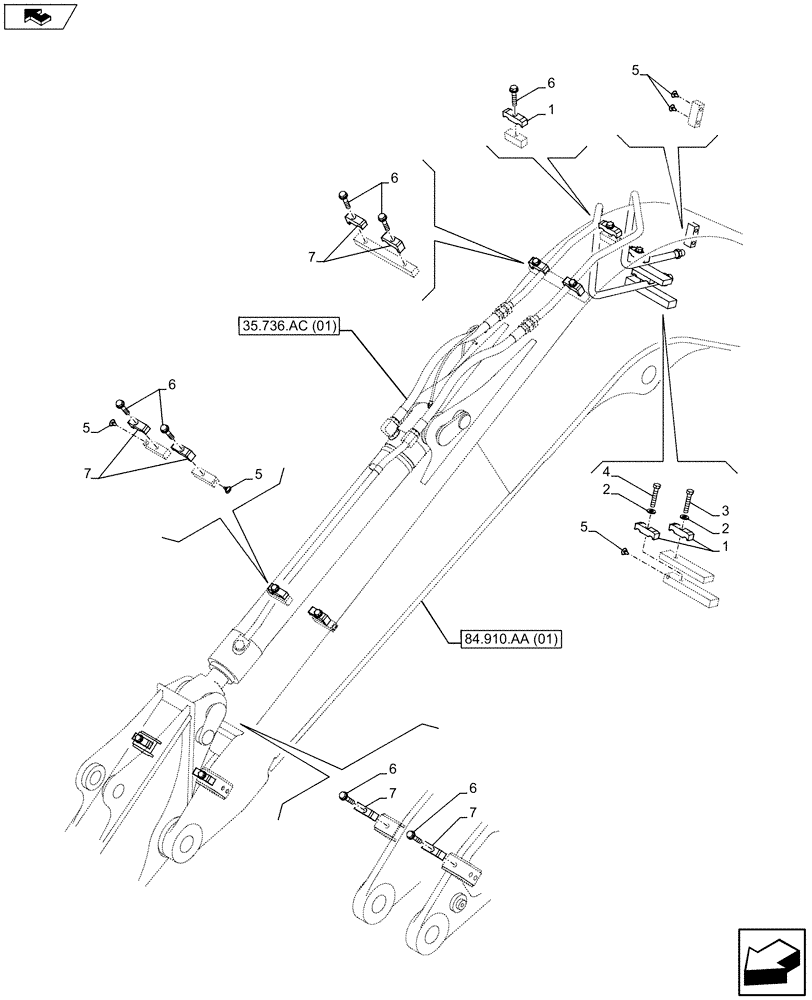

Запчасти Case CX75C SR (35.736.AC[12]) - VAR - 481858 - BOOM CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

166400A1

COLLAR

3шт.

2

150811A1

WASHER

2шт.

3

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

4

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

5

KHV12270

SCREW,M12 x 1

5шт.

6

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

7шт.

7

KAV13950

CLAMP

6шт.
