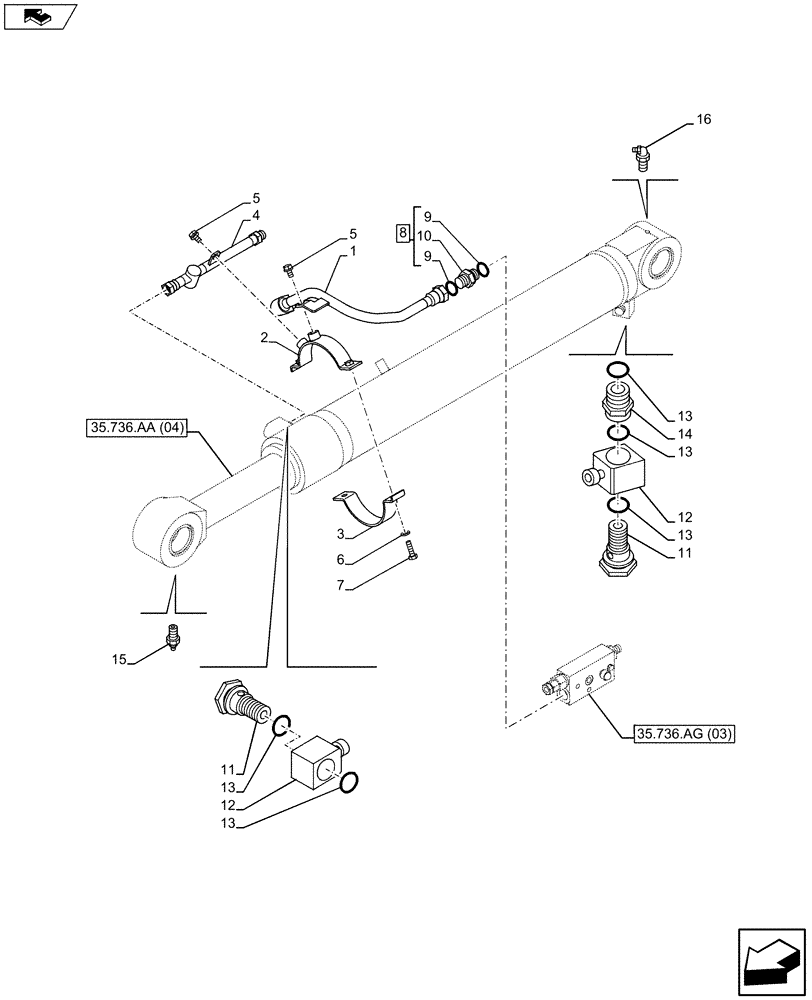

Запчасти Case CX75C SR (35.736.AC[07]) - VAR - 461559, 481064 - BOOM CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

KAV14330Y2

1шт.

2

KAV14300

CLAMP

1шт.

3

KAV14290

CLAMP

1шт.

4

KAV14340Y2

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

2шт.

6

150409A1

WASHER

1шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 9 - 10

1шт.

9

154503A1

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

Adapter, Incl in 8

1шт.

11

LK00348

PLUG

2шт.

12

LK00419

HYD CONNECTOR

2шт.

13

154515A1

O-RING

4шт.

14

LK00350

FITTING

1шт.

15

153630A1

LUBE NIPPLE

1шт.

16

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
