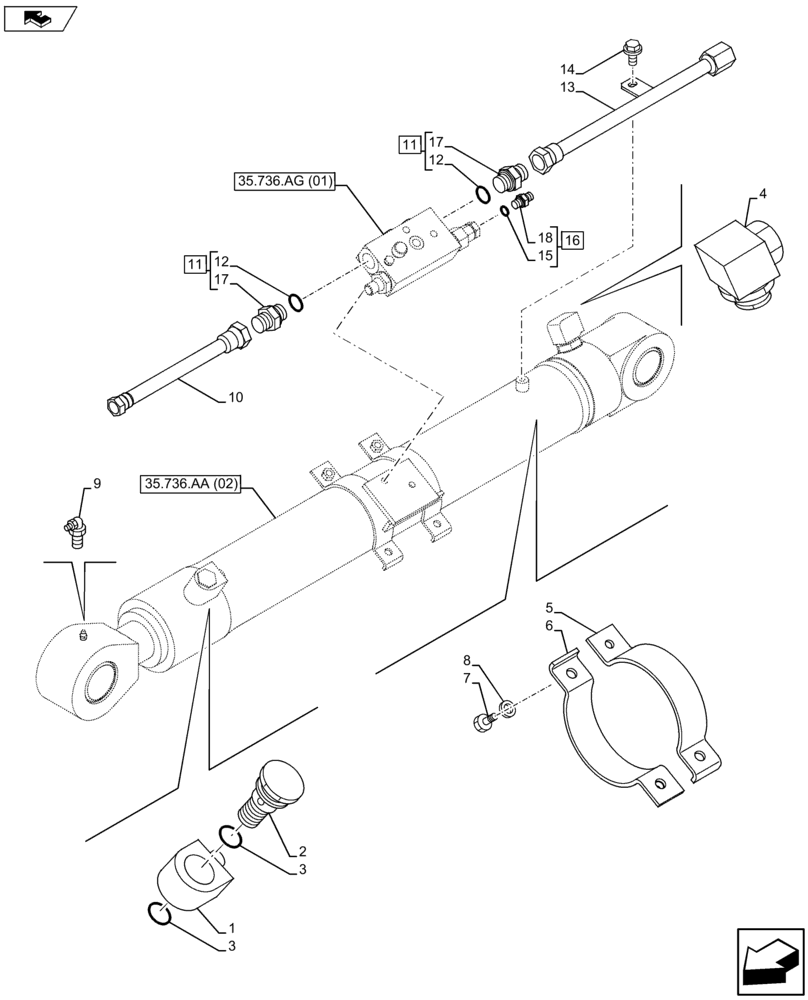

Запчасти Case CX75C SR (35.736.AC[03]) - VAR - 461559, 481064 - BOOM CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

LK00419

HYD CONNECTOR

1шт.

2

LK00348

PLUG

1шт.

3

154515A1

O-RING

1шт.

4

LK00347

FITTING

1шт.

5

LD002100

BAND

1шт.

6

LD002110

BAND

1шт.

7

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

2шт.

8

156227A1

WASHER

2шт.

9

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

10

KAV18860

HYD TUBE

1шт.

11

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 12, 17

2шт.

12

154503A1

O-RING

2шт.

13

KAV18880

HYD TUBE

1шт.

14

166350A1

BOLT

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 15, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Adapter, Incl in 11

2шт.

18

NSS

NOT SOLD SEPARAT

Adapter, Incl in 16

1шт.
