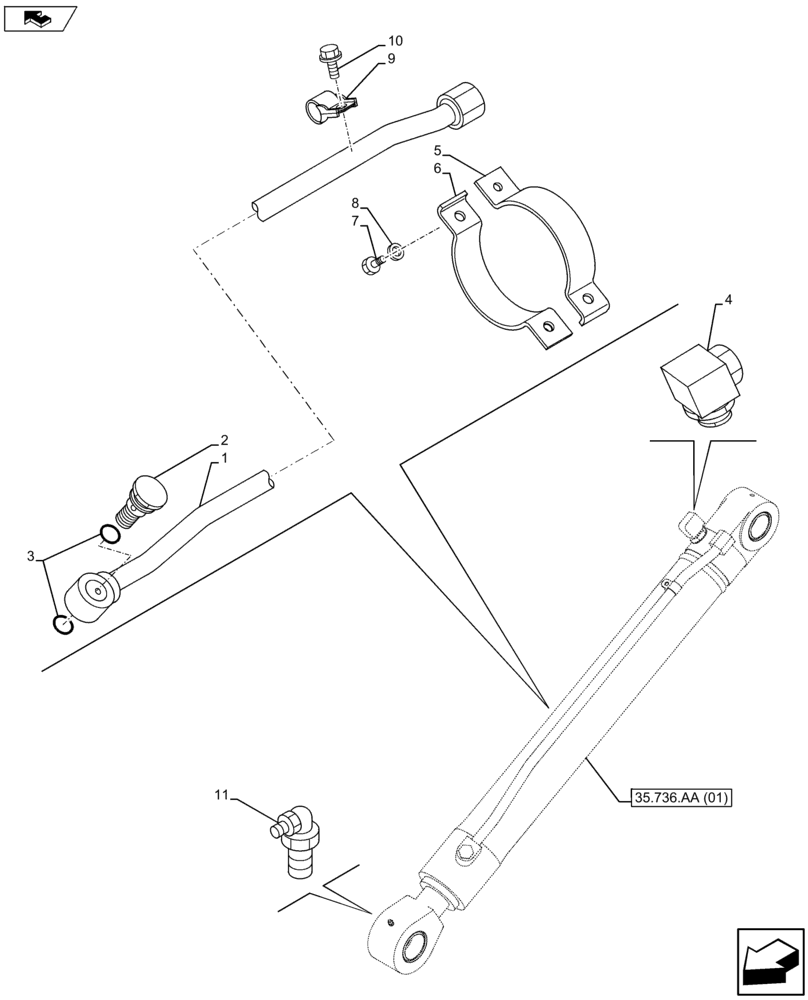

Запчасти Case CX75C SR (35.736.AC[02]) - VAR - 481265, 481858, 781172 - BOOM CYLINDER LINE (35) - HYDRAULIC SYSTEMS

1

LR021600

HYD TUBE

1шт.

2

LK00348

PLUG

1шт.

3

154515A1

O-RING

1шт.

4

LK00347

FITTING

1шт.

5

LD002100

BAND

1шт.

6

LD002110

BAND

1шт.

7

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

, Start Serial:

2шт.

8

156227A1

WASHER

2шт.

9

LS00179

BRACKET

1шт.

10

LA00789

BOLT,Spcl

1шт.

11

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
