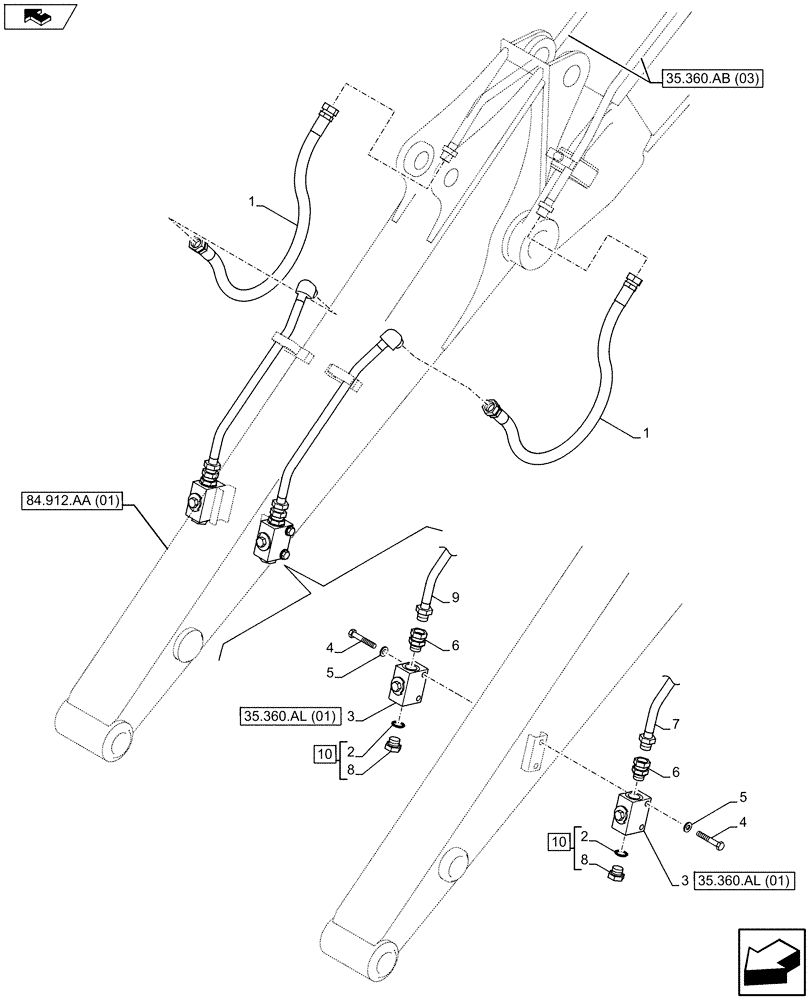

Запчасти Case CX75C SR (35.360.AB [01]) - VAR - 461865, 461868, 461561 - HAMMER SYSTEM LINES (35) - HYDRAULIC SYSTEMS

1

KAV13960

HYDRAULIC HOSE

2шт.

2

154503A1

O-RING

2шт.

3

KHV10710

VALVE

2шт.

4

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

167248A1

FITTING

2шт.

7

KAV13780

HYD TUBE

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

2шт.

9

KAV13790

HYD TUBE

1шт.

10

152924A1

PLUG

Assy, Incl 2, 8

2шт.
