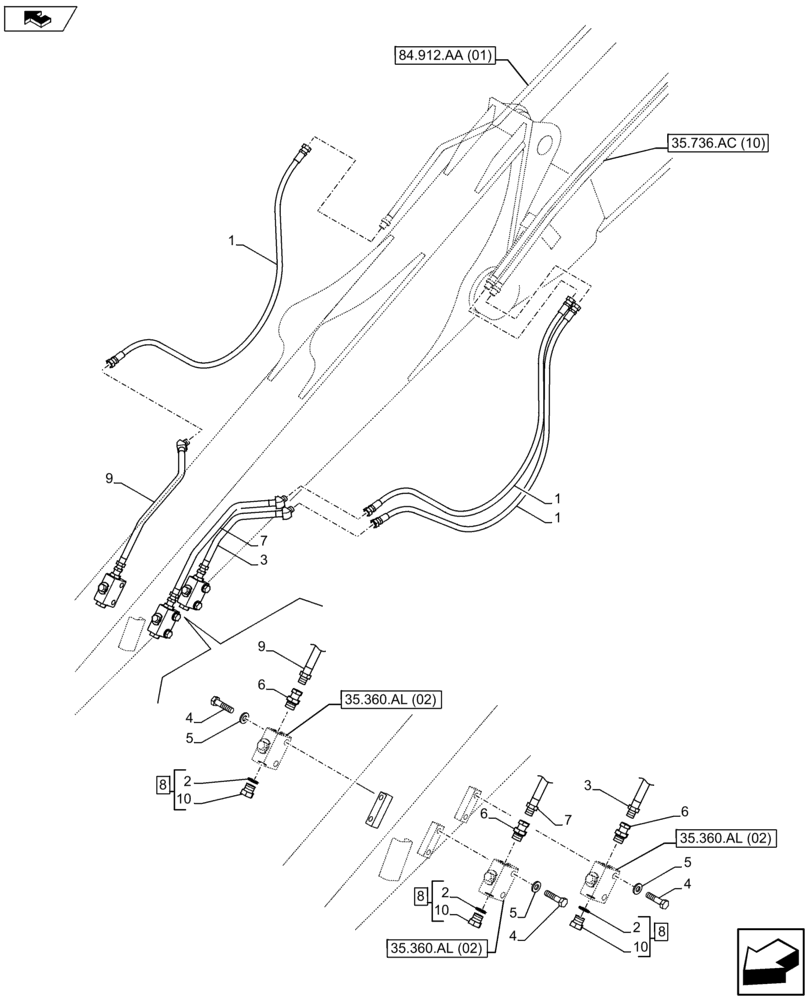

Запчасти Case CX75C SR (35.360.AB[07]) - VAR - 461863 - HAMMER SYSTEM LINE (35) - HYDRAULIC SYSTEMS

1

KAV14940

HYDRAULIC HOSE

3шт.

2

154487A1

O-RING

3шт.

3

KAV14850

HYD TUBE

1шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

KHJ1940

ADAPTER

3шт.

7

KAV14840

HYD TUBE

1шт.

8

159085A1

PLUG

Assy, Incl 2, 10

3шт.

9

KAV14860

HYD TUBE

1шт.

10

KHJ1940

ADAPTER

3шт.
