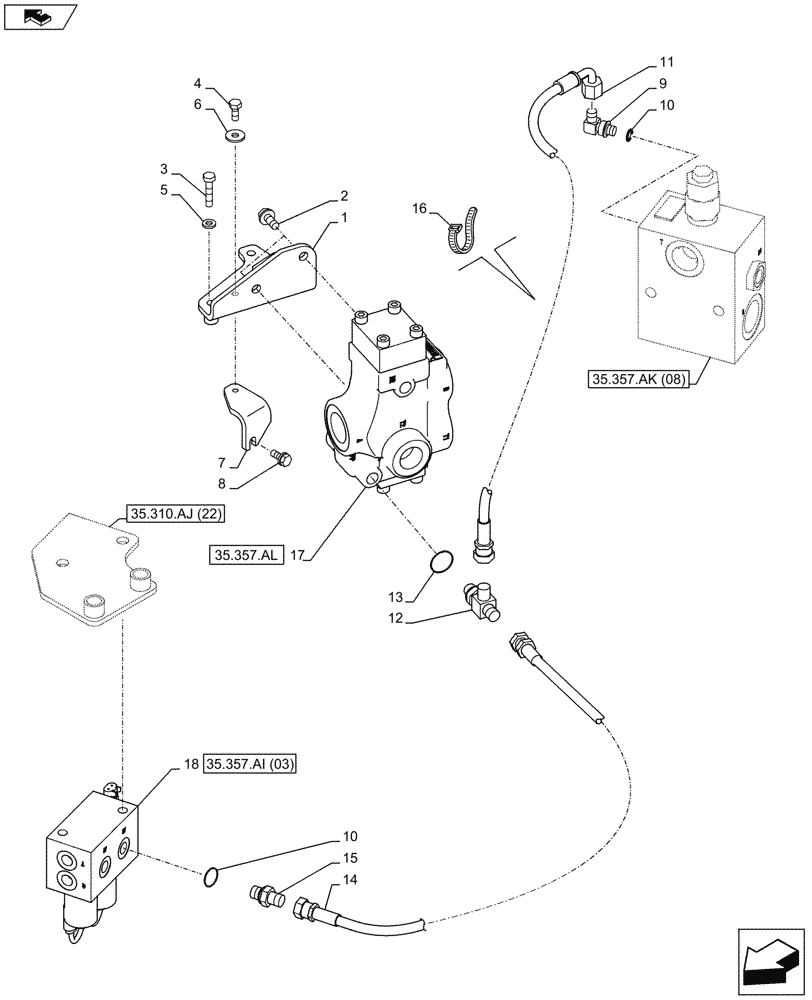

Запчасти Case CX75C SR (35.357.AK[07]) - VAR - 461563 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (ANZ) (35) - HYDRAULIC SYSTEMS

1

KAJ15290

BRACKET

1шт.

2

166352A1

BOLT

2шт.

3

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

5

150409A1

WASHER

2шт.

6

151977A1

WASHER

1шт.

7

KAJ15410

PLATE

1шт.

8

166052A1

BOLT

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

11

KHJ2085

HOSE

1шт.

12

159497A1

TEE

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

KHJ2256

HYDRAULIC HOSE

, Serial Range: -NES6A1140

1шт.

14

KHJ2163

HOSE

, Start Serial: NES6A1141

1шт.

15

162554A1

FITTING

, Serial Range: -NES6A1140

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

, Start Serial: NES6A1141

1шт.

16

150496A1

MOUNTING CLIP

1шт.

17

KHJ10420

VALVE SECTION

1шт.

18

KHJ14780

VALVE SECTION

, Serial Range: -NES6A1140

1шт.

18

KHJ14000

VALVE SECTION

, Start Serial: NES6A1141

1шт.
