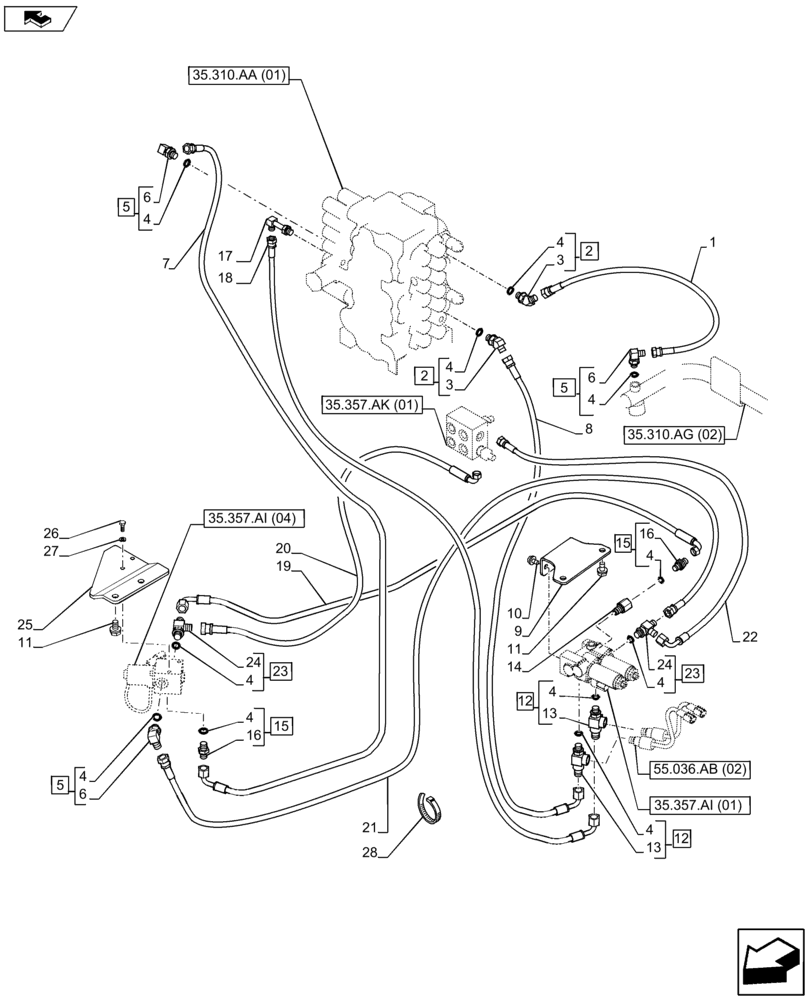

Запчасти Case CX75C SR (35.357.AK[06]) - VAR - 461871 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS

1

KHJ2047

HOSE

1шт.

2

150933A1

ELBOW

45�, Assy, Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Elbow 45�, Incl in 2

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 4, 6

4шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

KHJ2164

HOSE

1шт.

8

KHJ27990

HOSE

1шт.

9

KHJ28770

BRACKET

1шт.

10

166345A1

BOLT

2шт.

11

166351A1

BOLT,Sems, M10 x 20mm

4шт.

12

167666A1

FITTING

Assy, Incl 4, 13

1шт.

13

NSS

NOT SOLD SEPARAT

Adapter, Incl in 12

1шт.

14

KHJ25100

STUD

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 4, 16

2шт.

16

NSS

NOT SOLD SEPARAT

Adapter, Incl in 15

1шт.

17

KHJ1178

ELBOW

1шт.

18

KHJ2341

HOSE

1шт.

19

KHJ2342

HOSE

1шт.

20

KHJ2194

HOSE,6.3mm ID x 650mm L

1шт.

21

KHJ2084

HOSE

1шт.

22

KHJ2351

HOSE

1шт.

23

159497A1

TEE

Assy, Incl 4, 24

2шт.

24

NSS

NOT SOLD SEPARAT

Tee, Incl in 23

1шт.

25

KRJ32940

BRACKET

1шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

27

183-106VR

SPRING WASHER

2шт.

28

150496A1

MOUNTING CLIP

1шт.
