(35.357.AK[05]) - VAR - 461865 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK

Запчасти Case CX75C SR (35.357.AK[05]) - VAR - 461865 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS

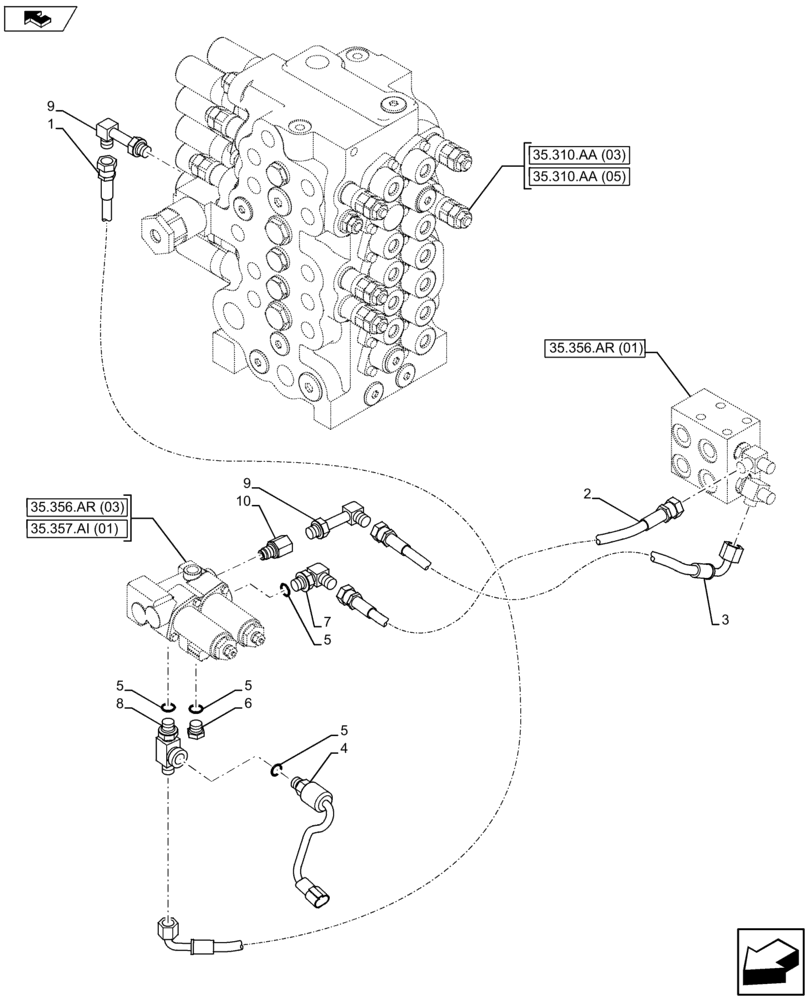

Схема запчастей Case CX75C SR - (35.357.AK[05]) - VAR - 461865 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS
3
5
7
35.310.aa (03)
35.357.ai (01)
4
35.310.aa (05)
9
9
5
1
5
5
35.356.ar (01)
35.356.ar (03)
6
2
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2134

HOSE,6.3mm ID x 2250mm L

1шт.

2

KHJ2237

HOSE

1шт.

3

KHJ2351

HOSE

1шт.

4

KHR21500

PRESSURE SWITCH

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

159002A1

PLUG

1шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

1шт.

8

167666A1

FITTING

1шт.

9

KHJ1178

ELBOW

2шт.

10

KHJ25100

STUD

1шт.
