(35.357.AK[02]) - VAR - 461025 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK

Запчасти Case CX75C SR (35.357.AK[02]) - VAR - 461025 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS

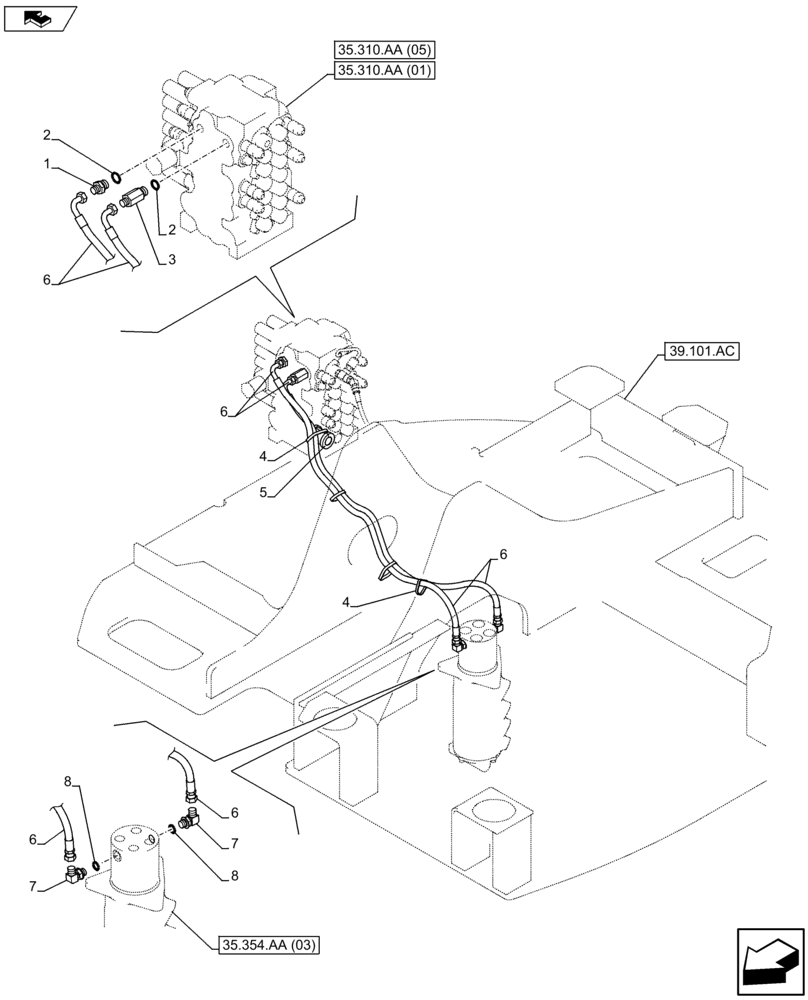

Схема запчастей Case CX75C SR - (35.357.AK[02]) - VAR - 461025 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS
39.101.ac
2
4
1
6
6
7
6
4
2
35.354.aa (03)
8
35.310.aa (01)
35.310.aa (05)
7
5
3
6
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

161084A1

ADAPTER

1шт.

2

154487A1

O-RING

2шт.

3

FAJ0224

ADAPTER

1шт.

4

150071A1

MOUNTING CLIP

1шт.

5

KHJ2022

HOSE CLAMP

1шт.

6

KAJ18360

HYDRAULIC HOSE

2шт.

7

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

2шт.

8

154475A1

O-RING

2шт.
