(35.357.AK[01]) - VAR - 461025 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK

Запчасти Case CX75C SR (35.357.AK[01]) - VAR - 461025 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS

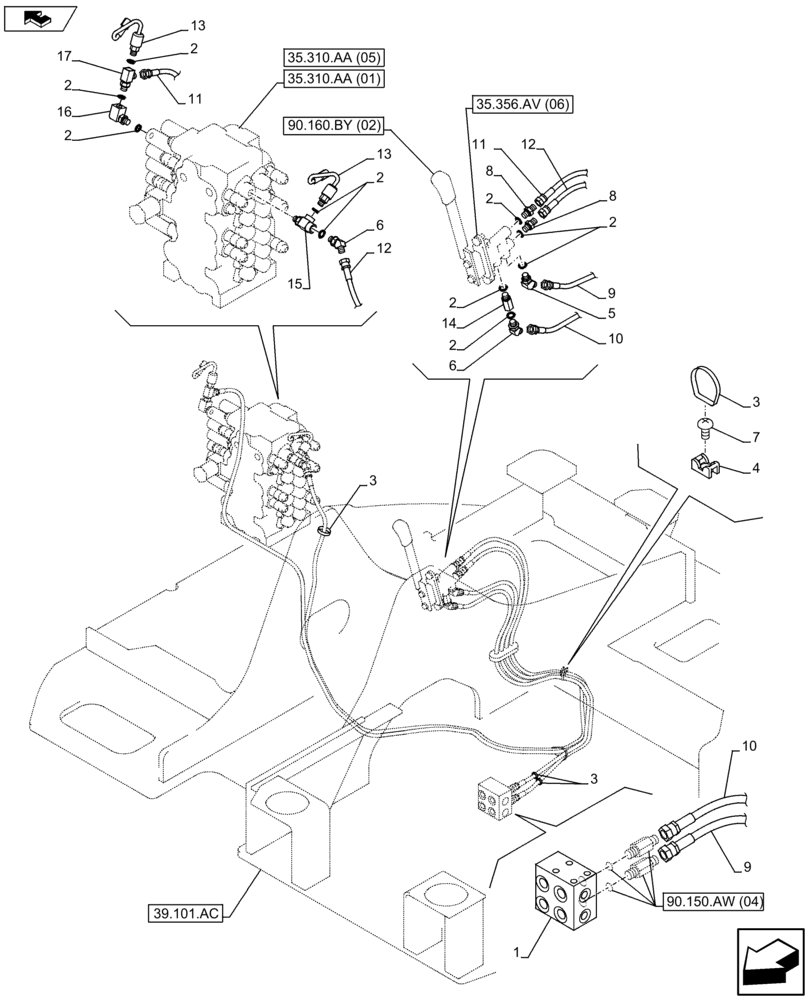

Схема запчастей Case CX75C SR - (35.357.AK[01]) - VAR - 461025 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS
3
2
35.310.aa (05)
11
10
13
8
1
2
6
9
17
12
10
14
12
11
4
90.150.aw (04)
35.310.aa (01)
2
3
35.356.av (06)
16
5
90.160.by (02)
7
13
2
2
3
2
15
2
2
9
6
8
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ5903

MANIFOLD

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

10шт.

3

150496A1

MOUNTING CLIP

4шт.

4

150860A1

COLLAR

1шт.

5

KHJ0994

ADAPTER

1шт.

6

150933A1

ELBOW

2шт.

7

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

9

KHJ2057

HOSE

1шт.

10

KHJ2311

HOSE

1шт.

11

KHJ10130

HYDRAULIC HOSE

1шт.

12

KHJ2079

HOSE

1шт.

13

KHR21490

PRESSURE SWITCH

2шт.

14

162525A1

STUD

1шт.

15

KHJ12530

TEE

1шт.

16

KHJ0719

ELBOW

1шт.

17

KHJ2773

TEE

1шт.
