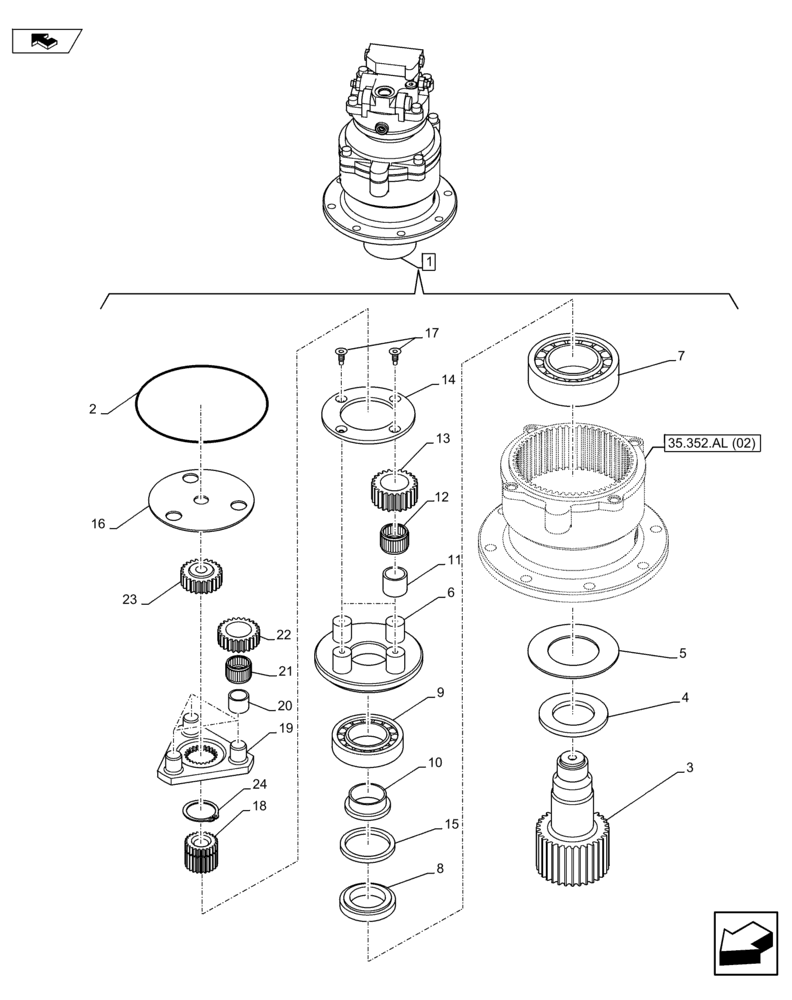

Запчасти Case CX75C SR (35.352.AL[05]) - SWING REDUCTION MOTOR (35) - HYDRAULIC SYSTEMS

1

KAC10050

HYDRAULIC MOTOR

Assy, Incl 2 - 24

1шт.

2

155216A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

6

LS00191

HOLDER

1шт.

7

NSS

NOT SOLD SEPARAT

Roller Bearing, Incl in 1

1шт.

8

LE00983

OIL SEAL

1шт.

9

NSS

NOT SOLD SEPARAT

Roller Bearing, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Plate 6.71MM, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Plate 6.78MM, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Plate 6.85MM, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Plate 6.92MM, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

Plate 6.99MM, Incl in 1

2шт.

11

LB00760

RING RACE

4шт.

12

LB00761

ROLLER BEARING

4шт.

13

LC00194

PLANETARY GEAR

4шт.

14

LR00831

THRUST PLATE

1шт.

15

LH00315

COLLAR

1шт.

16

NSS

NOT SOLD SEPARAT

Thrust Plate, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Thrust Plate, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Thrust Plate, Incl in 1

1шт.

17

LUM0174

SCREW

4шт.

18

LDM0175

SUN GEAR

1шт.

19

LS00192

HOLDER

1шт.

20

LB00762

RING RACE

3шт.

21

LB00763

ROLLER BEARING

3шт.

22

LC00195

PLANETARY GEAR

3шт.

23

LC00196

PLANETARY GEAR

1шт.

24

LMM0536

RING

1шт.
