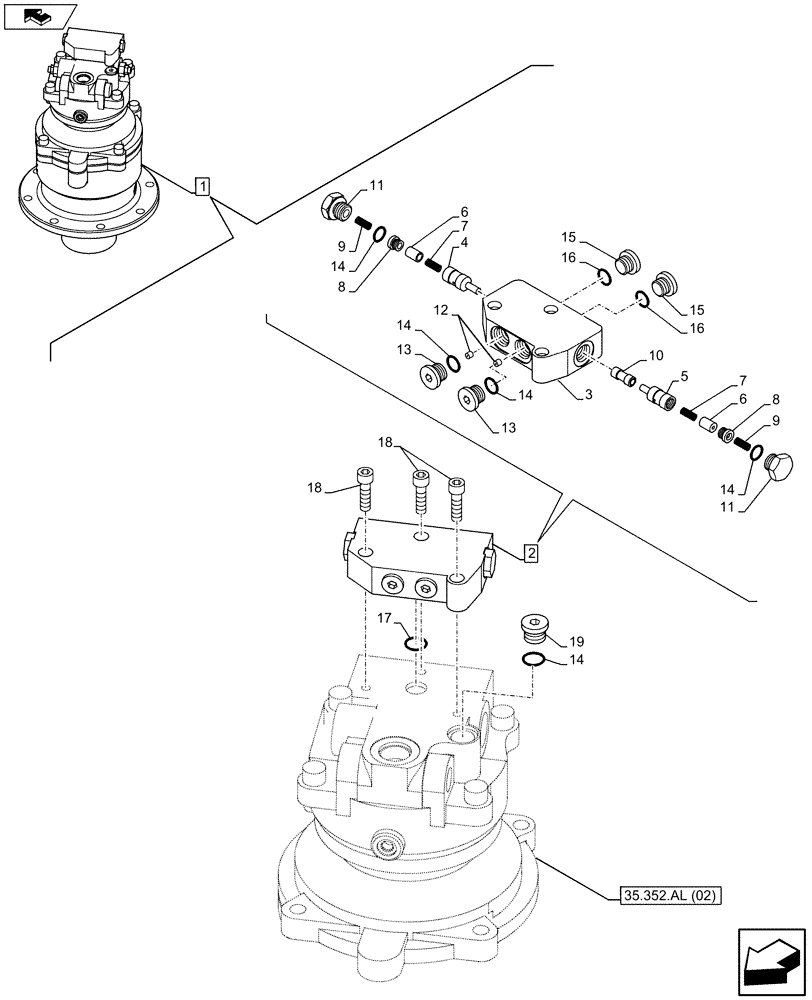

Запчасти Case CX75C SR (35.352.AL[03]) - SWING REDUCTION MOTOR (35) - HYDRAULIC SYSTEMS

1

KAC10050

HYDRAULIC MOTOR

Assy, Incl 2 - 20

1шт.

2

LJ00924

VALVE

Assy, Incl 3 - 16

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 2

2шт.

5

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 2

2шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

2шт.

7

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

2шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

9

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

2шт.

10

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

12

NSS

NOT SOLD SEPARAT

Orifice, Incl in 2

2шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

14

154475A1

O-RING

5шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

17

154463A1

O-RING

3шт.

18

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

3шт.

19

861-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.
