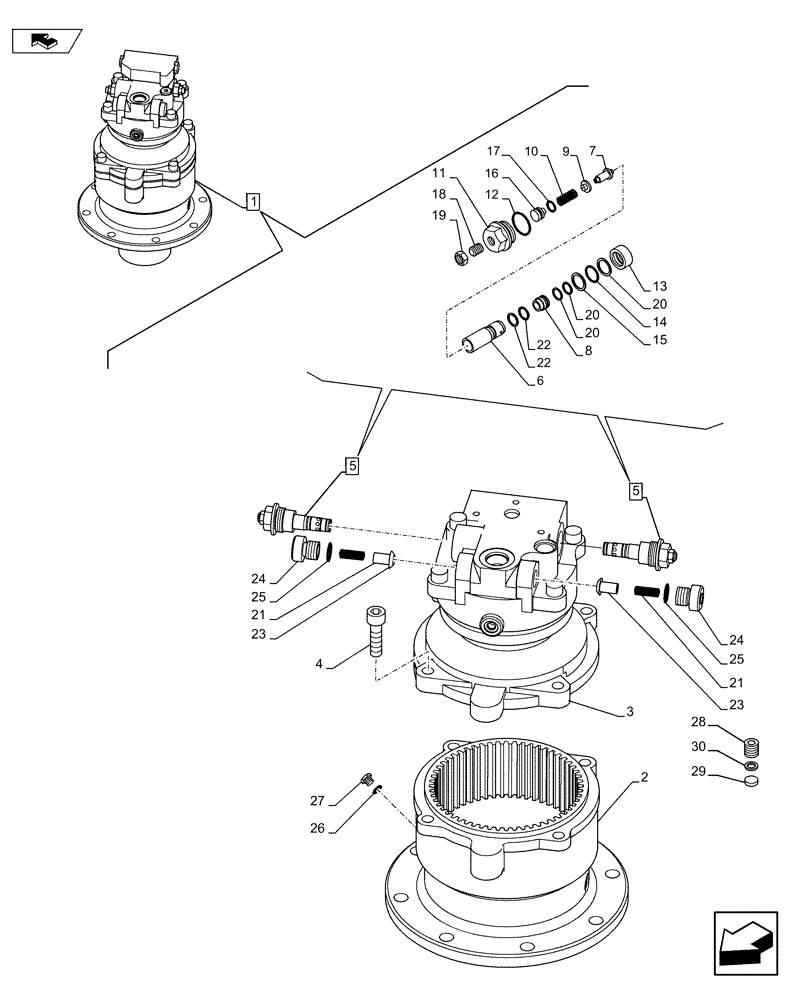

Запчасти Case CX75C SR (35.352.AL[02]) - SWING REDUCTION MOTOR (35) - HYDRAULIC SYSTEMS

1

KAC10050

HYDRAULIC MOTOR

Assy, Incl 2 - 30

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

LW00373

HOUSING

1шт.

4

861-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

5

LJ00922

VALVE, PRESSURE RELI

Assy, Incl 6 - 22

2шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 5

2шт.

7

NSS

NOT SOLD SEPARAT

Poppet, Incl in 5

2шт.

8

NSS

NOT SOLD SEPARAT

Seat, Incl in 5

2шт.

9

NSS

NOT SOLD SEPARAT

Spring Seat, Incl in 5

2шт.

10

NSS

NOT SOLD SEPARAT

Spring Compression, Incl in 5

2шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.

12

155225A1

O-RING

2шт.

13

NSS

NOT SOLD SEPARAT

Piston, Incl in 5

2шт.

14

154495A1

O-RING

2шт.

15

154496A1

O-RING

4шт.

16

NSS

NOT SOLD SEPARAT

Spring Guide, Incl in 5

2шт.

17

155063A1

O-RING

2шт.

18

NSS

NOT SOLD SEPARAT

Screw, Incl in 5

2шт.

19

NSS

NOT SOLD SEPARAT

Nut, Incl in 5

2шт.

20

154479A1

O-RING

4шт.

21

LG00420

COMPRESSION SPRING

2шт.

22

154483A1

O-RING

4шт.

23

LJ00921

POPPET

2шт.

24

LK00366

PLUG

2шт.

25

154495A1

O-RING

2шт.

26

154455A1

O-RING

1шт.

27

164024A1

PLUG

1шт.

28

NSS

NOT SOLD SEPARAT

Orifice, Incl in 1

1шт.

29

NSS

NOT SOLD SEPARAT

Filter, Incl in 1

1шт.

30

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.
