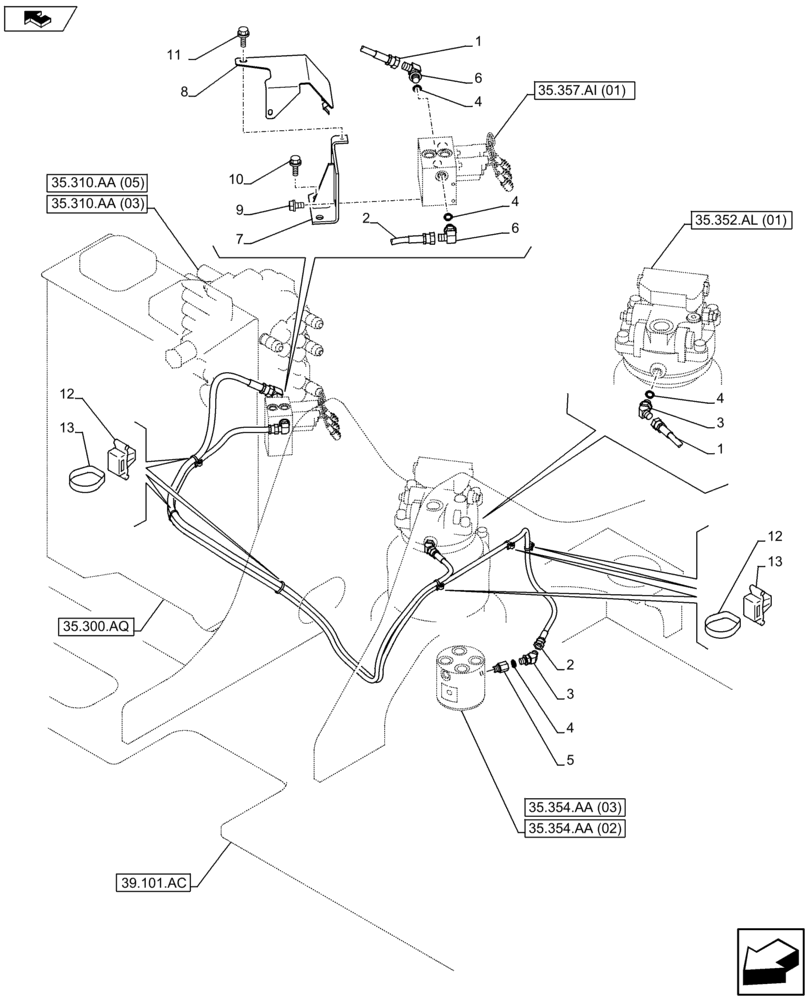

Запчасти Case CX75C SR (35.352.AI[02]) - SWING MOTOR LINES (35) - HYDRAULIC SYSTEMS

1

KHJ2065

HOSE

1шт.

2

KHJ2070

HOSE

1шт.

3

150933A1

ELBOW

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

KHJ13640

STUD

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

7

KAJ15380

BRACKET

1шт.

8

KAJ15390

COVER

1шт.

9

166351A1

BOLT,Sems, M10 x 20mm

1шт.

10

166052A1

BOLT

1шт.

11

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

12

150496A1

MOUNTING CLIP

6шт.

13

KHR10220

MOUNTING CLIP

6шт.
