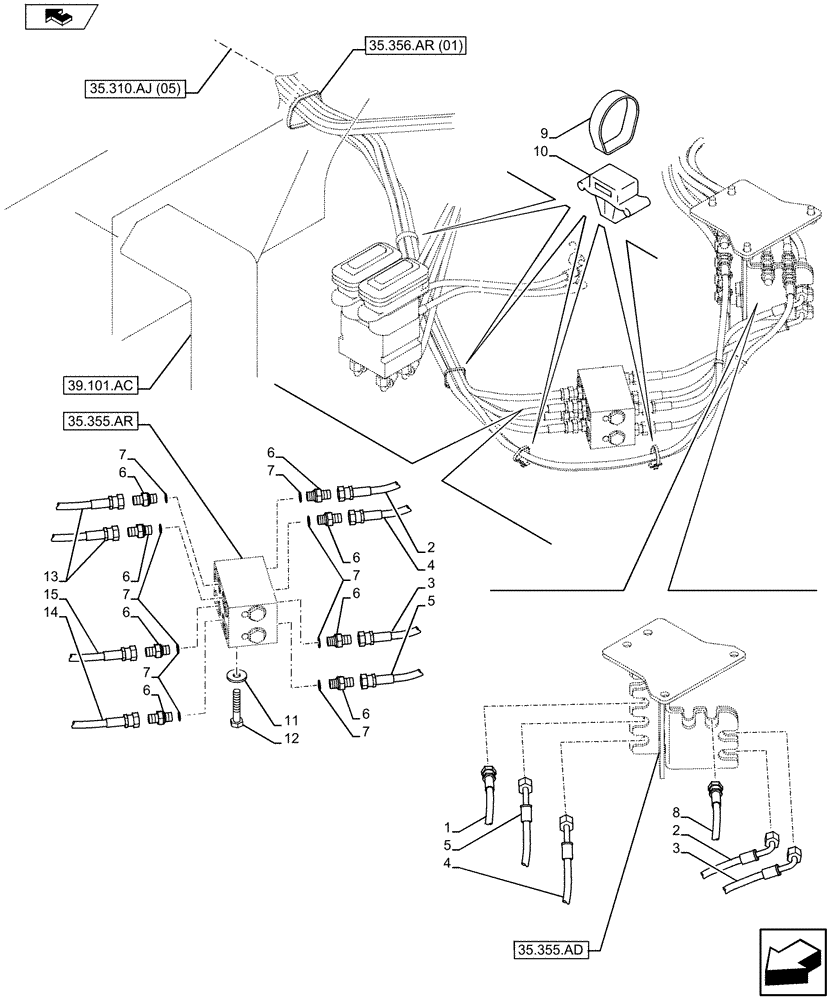

Запчасти Case CX75C SR (35.310.AJ[10]) - CONTROL VALVE HOSE (35) - HYDRAULIC SYSTEMS

1

KHJ2172

HOSE

1шт.

2

KHJ2238

HOSE

1шт.

3

KHJ2342

HOSE

1шт.

4

KHJ21180

HOSE

1шт.

5

KHJ23500

HOSE

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

8шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

8

KHJ20470

HOSE

1шт.

9

150496A1

MOUNTING CLIP

4шт.

10

KHR10220

MOUNTING CLIP

4шт.

11

151977A1

WASHER

3шт.

12

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

3шт.

13

KHJ2070

HOSE

2шт.

14

KHJ2063

HOSE

1шт.

15

KHJ2069

HOSE

1шт.
