(35.310.AJ[06]) - VAR - 461559, 481064 - CONTROL VALVE HOSES

Запчасти Case CX75C SR (35.310.AJ[06]) - VAR - 461559, 481064 - CONTROL VALVE HOSES (35) - HYDRAULIC SYSTEMS

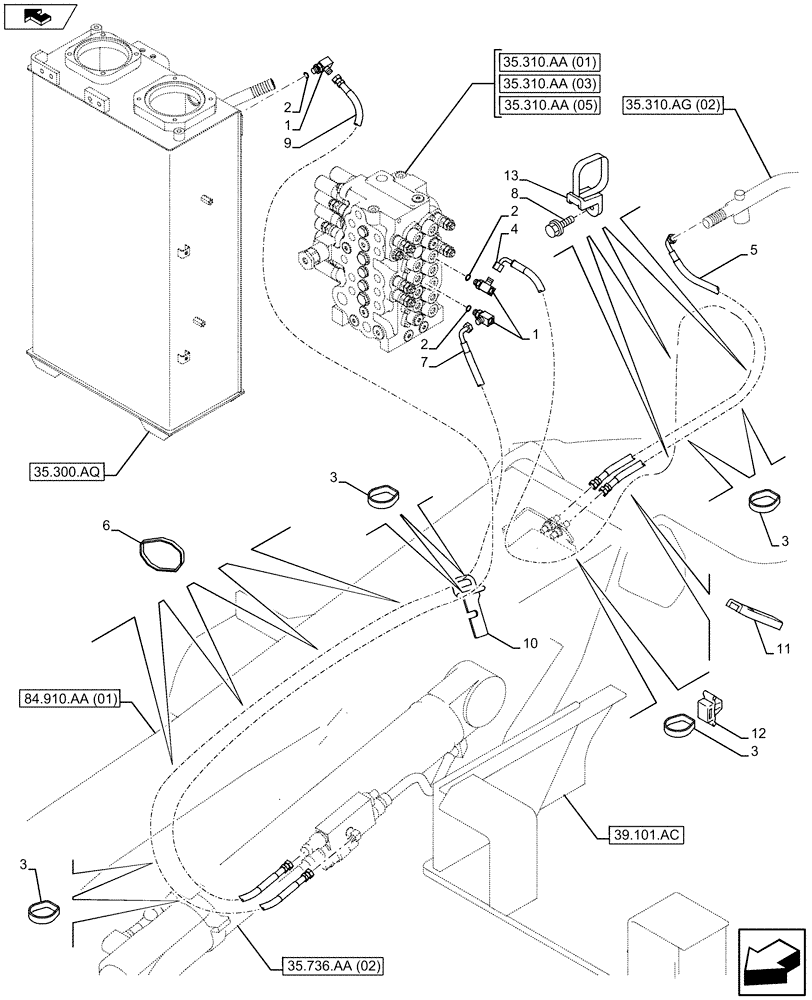

Схема запчастей Case CX75C SR - (35.310.AJ[06]) - VAR - 461559, 481064 - CONTROL VALVE HOSES (35) - HYDRAULIC SYSTEMS
13
9
35.310.aa (03)
2
2
3
3
2
8
home
10
12
35.310.aa (01)
35.310.aa (05)
3
3
6
1
84.910.aa (01)
39.101.ac
5
35.736.aa (02)
35.300.aq
1
7
11
4
35.310.ag (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2773

TEE

3шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

3

150496A1

MOUNTING CLIP

9шт.

4

KHJ28170

HYDRAULIC HOSE

1шт.

5

KHJ28160

HYDRAULIC HOSE

1шт.

6

150071A1

MOUNTING CLIP

5шт.

7

KHJ28370

HYDRAULIC HOSE

1шт.

8

KHJ1215

BOLT,Spcl

2шт.

9

KHJ27110

HYDRAULIC HOSE

1шт.

10

KAJ18820

BRACKET

1шт.

11

KNB13720

SEAL PROTECTION

1шт.

12

KHR10220

MOUNTING CLIP

1шт.

13

KHR2581

CLAMP

4шт.
