(35.310.AG[07]) - OIL RETURN LINE

Запчасти Case CX75C SR (35.310.AG[07]) - OIL RETURN LINE (35) - HYDRAULIC SYSTEMS

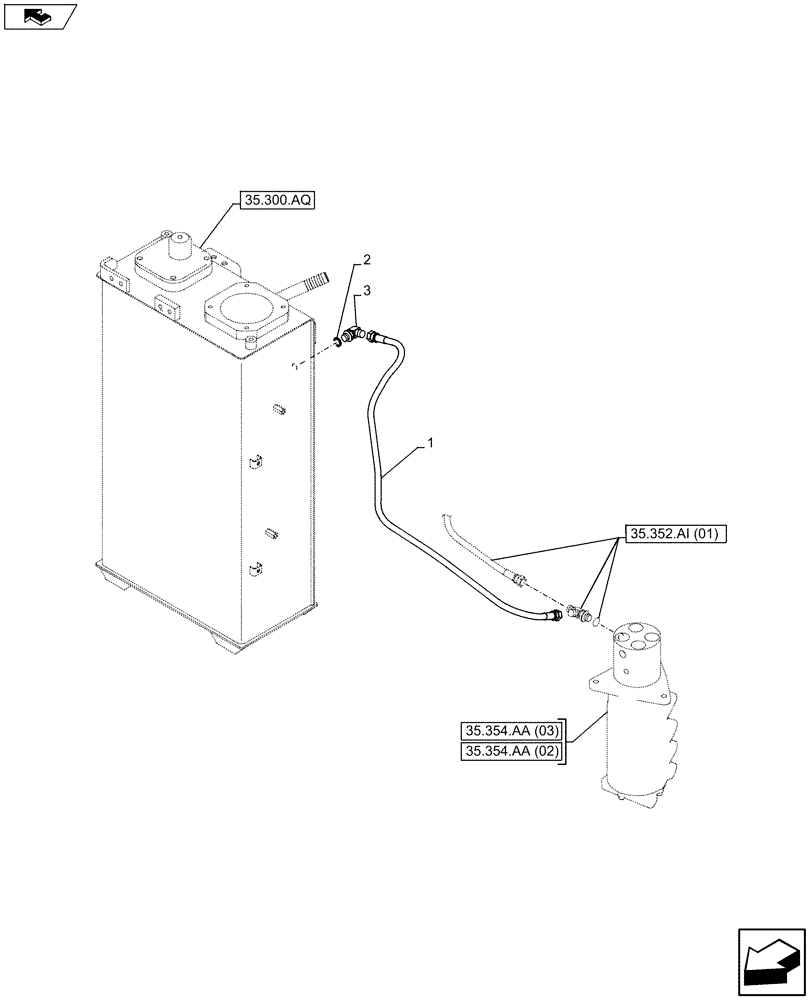

Схема запчастей Case CX75C SR - (35.310.AG[07]) - OIL RETURN LINE (35) - HYDRAULIC SYSTEMS
35.354.aa (03)
2
home
1
3
35.354.aa (02)
35.300.aq
35.352.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ26660

HOSE ASSY.

1шт.

2

154475A1

O-RING

1шт.

3

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

1шт.
