(35.310.AG[05]) - VAR - 461866 - OIL RETURN LINE

Запчасти Case CX75C SR (35.310.AG[05]) - VAR - 461866 - OIL RETURN LINE (35) - HYDRAULIC SYSTEMS

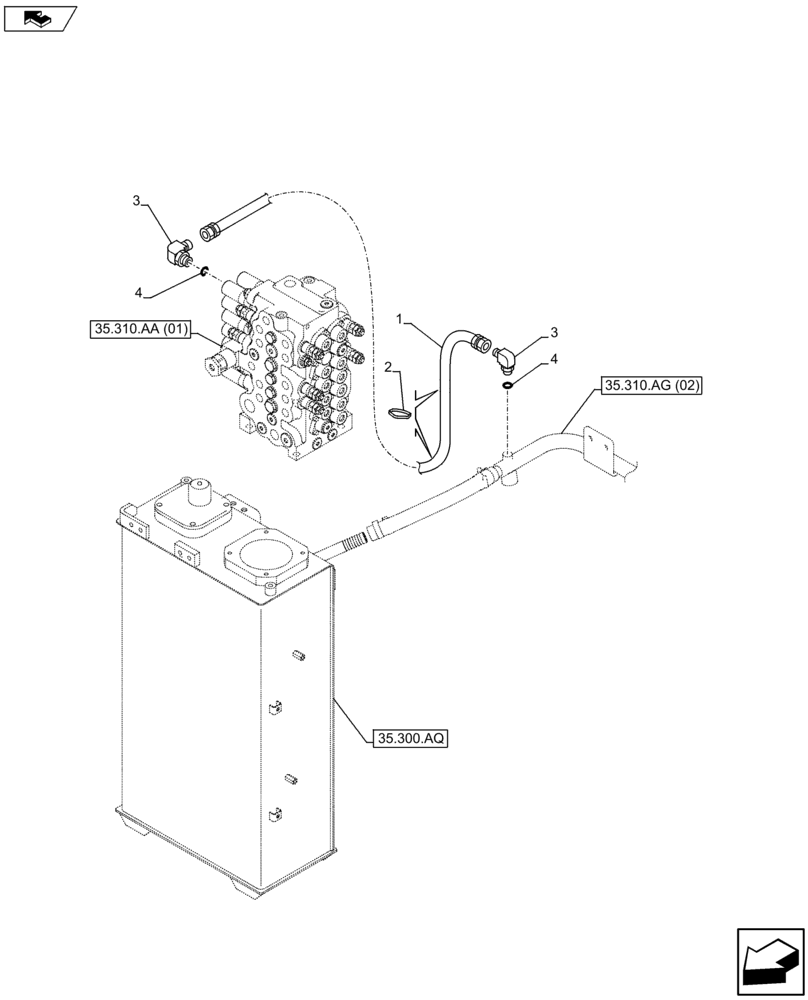

Схема запчастей Case CX75C SR - (35.310.AG[05]) - VAR - 461866 - OIL RETURN LINE (35) - HYDRAULIC SYSTEMS
35.310.ag (02)
2
35.310.aa (01)
1
4
35.300.aq
4
home
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2060

HOSE

1шт.

2

150496A1

MOUNTING CLIP

2шт.

3

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.
