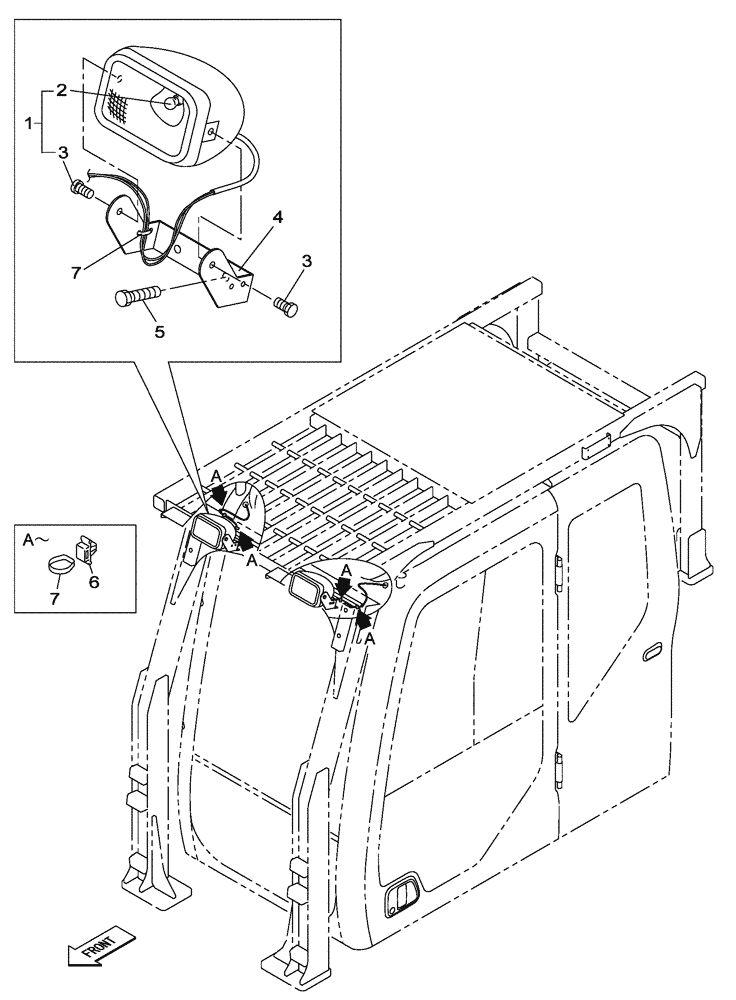

Запчасти Case CX470C (04-006-00[01]) - LAMP, WORK (06) - ELECTRICAL SYSTEMS

1

KHR16240

WORK LAMP,Halogen, 24V, 70W, Clear

24V - 70W

2шт.

Include(s) 2, 3

1шт.

2

152812A1

BULB

2шт.

3

KHR3556

BOLT,Spcl

M6 x 16

4шт.

4

KHR16710

SUPPORT

2шт.

5

166350A1

BOLT

M8 x 20

4шт.

6

KHR10220

MOUNTING CLIP

4шт.

7

150496A1

MOUNTING CLIP

250 mm

6шт.

8

KHR19060

HARNESS

2шт.

9

KHN17130

HARNESS

Not Shown

2шт.
