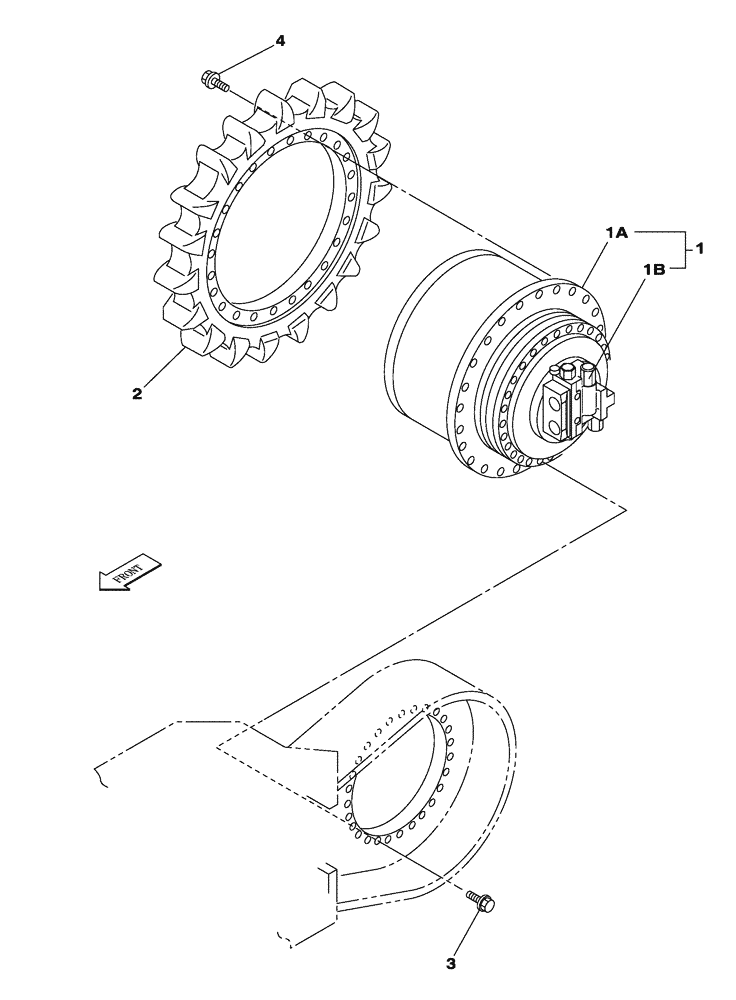

Запчасти Case CX470C (06-001-00[01]) - TRAVEL MOTOR AND REDUCTION GEAR (03) - TRANSMISSION

1

KTA10192

MOTO-REDUCTION GEAR

2шт.

Include(s) 1A, 1B

1шт.

1

KTA10192R

REMAN-MOTO REDUCTION

CX470C CRAWLER EXCAVATOR TIER 4 (NA) (9/11-)

2шт.

1

KTA10192C

CORE-MOTO-REDUCTION UNIT

Return Number

2шт.

1a

LN001990

REDUCER

1шт.

See Figure(s) 06-010-00 01

1шт.

1b

LJ018720

HYDRAULIC MOTOR

1шт.

LJ018720R

REMAN-HYD MOTOR

CX470C TIER 4 (7/11-)

1шт.

LJ018720C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

See Figure(s) 07-011-00 01, 07-012-00 01

1шт.

2

KTA1069

SPROCKET

1шт.

3

166477A1

BOLT,Sems, M24 x 90mm

M24 x 90

54шт.

4

105R024Y070R

BOLT

M24 x 70

48шт.
