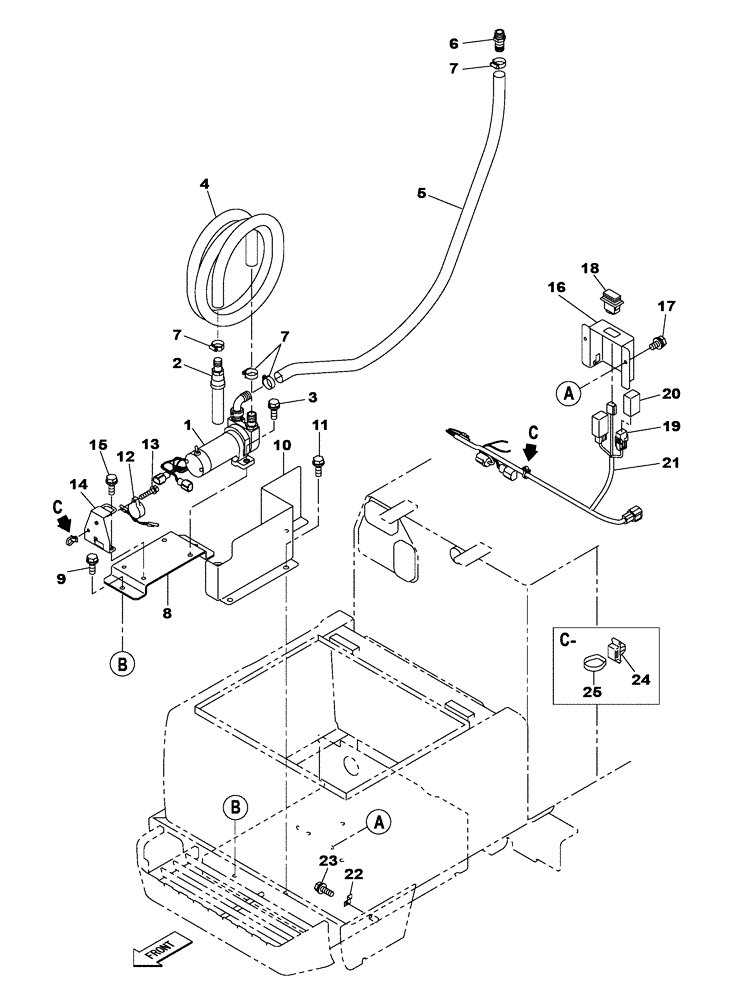

Запчасти Case CX470C (03-004-00[01]) - FUEL FILLING PUMP (02) - FUEL SYSTEM

1

KHR12840

FUEL PUMP

1шт.

Include(s) 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

Fuse

1шт.

2

KHR12430

VALVE SECTION

1шт.

3

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

2шт.

4

KHR11460

FUEL HOSE

4000 mm

1шт.

5

KHR26580

FUEL HOSE

1600 mm

1шт.

6

KHR11480

LUBE NIPPLE

1шт.

7

157917A1

COLLAR

4шт.

8

KHR12860

SUPPORT

1шт.

9

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

10

KHR15090

COVER

1шт.

11

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

3шт.

12

KHR4024

ALARM

1шт.

13

KHR1832

SPECIAL BOLT

M5 x 25

1шт.

14

KHR12880

SUPPORT

1шт.

15

166345A1

BOLT

M8 x 16

2шт.

16

KHR15080

COVER

1шт.

17

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16

2шт.

18

KHR12900

SWITCH

1шт.

19

KHR3802

RELAY

2шт.

20

159904A1

COVER

2шт.

21

KHR15101

HARNESS

1шт.

22

KHR16450

CLIP

1шт.

23

KHJ1215

BOLT,Spcl

M8 x 25

1шт.

24

KHR10220

MOUNTING CLIP

2шт.

25

150496A1

MOUNTING CLIP

250 mm

2шт.
