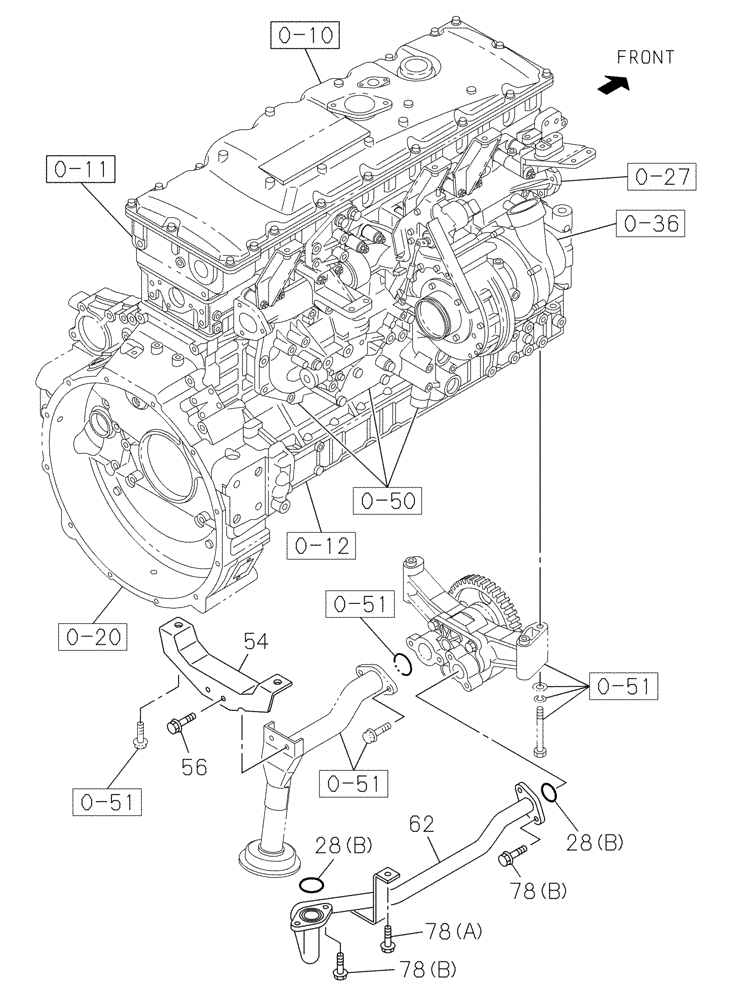

Запчасти Case CX470C (02-052-02[01]) - OIL CIRCUIT (01) - ENGINE

0-10

84477174

COVER

1шт.

See Figure(s) 02-010-01-01

1шт.

0-11

84160077

CYLINDER HEAD

1шт.

See Figure(s) 02-011-01 01

1шт.

0-11

47607709R

REMAN-CYLINDER HEAD

Complete Reman Cylinder Head With Valves

1шт.

0-11

47607709C

CORE-CYLINDER HEAD

Return Number

1шт.

0-11

47828375R

REMAN-CYLINDER HEAD

Complete Reman Cylinder Head With Valves

1шт.

0-11

47828375C

CORE-CYLINDER HEAD

Core Return Number

1шт.

0-12

84477120

BLOCK,6 Cylinders, W/O Turbocharger

1шт.

See Figure(s) 02-012-01 01

1шт.

0-20

84477317

HOUSING

1шт.

See Figure(s) 02-020-01 01

1шт.

0-27

87603432

EXHAUST MANIFOLD

1шт.

See Figure(s) 02-027-01 01

1шт.

0-36

84477639

TURBOCHARGER

1шт.

See Figure(s) 02-036-01 01

1шт.

0-36

84477639R

REMAN-TURBOCHARGER

CX470C CRAWLER EXCAVATOR TIER 4 (NA) (9/11-)

1шт.

0-36

84477639C

CORE-TURBOCHARGER

Return Number

1шт.

0-50

87604402

ENGINE OIL FILTER

1шт.

See Figure(s) 02-050-01 01

1шт.

0-51

87605123

FILTER STRAINER

1шт.

See Figure(s) 02-051-01 01

1шт.

28b

87596960

GASKET

2шт.

54

86987278

STAY

1шт.

56

87595866

BOLT

2шт.

62

87605209

PIPE

1шт.

78a

87595866

BOLT

1шт.

78b

87595918

BOLT

4шт.
