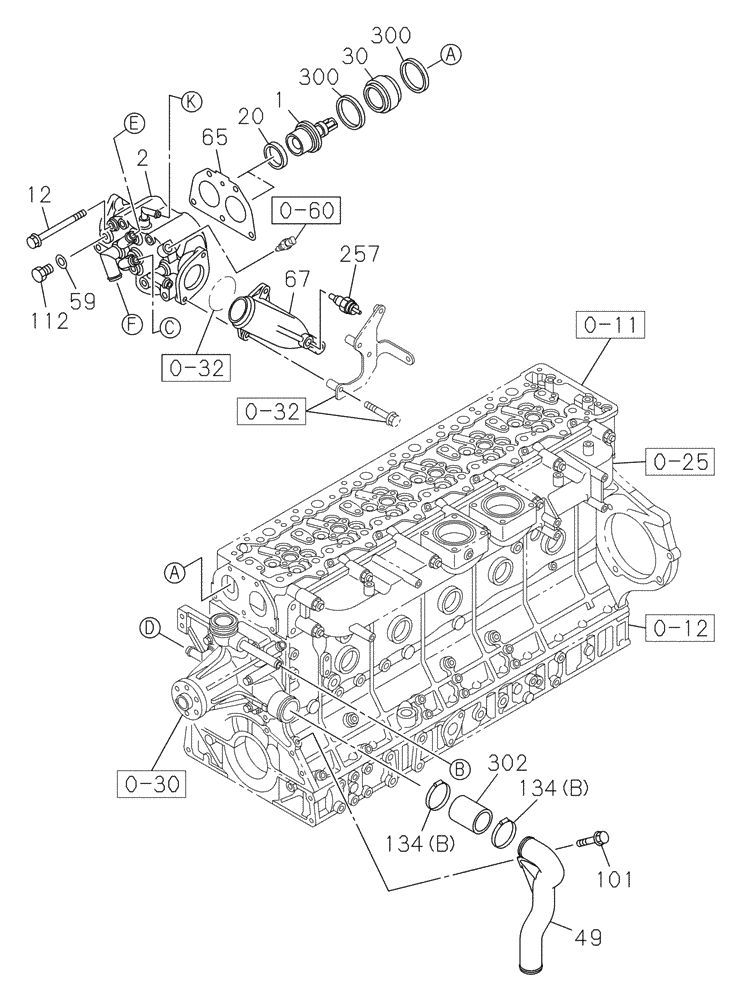

Запчасти Case CX470C (02-031-01[01]) - ENGINE WATER CIRCUIT - THERMOSTAT (01) - ENGINE

0-11

84160077

CYLINDER HEAD

1шт.

See Figure(s) 02-011-01 01

1шт.

0-11

47607709R

REMAN-CYLINDER HEAD

Complete Cylinder Head With Valves

1шт.

0-11

47607709C

CORE-CYLINDER HEAD

Return Number

1шт.

0-11

47828375R

REMAN-CYLINDER HEAD

Complete Cylinder Head With Valves

1шт.

0-11

47828375C

CORE-CYLINDER HEAD

Core Return Number

1шт.

0-12

84477120

BLOCK,6 Cylinders, W/O Turbocharger

1шт.

See Figure(s) 02-012-01 01

1шт.

0-25

84160077

CYLINDER HEAD

1шт.

See Figure(s) 02-011-01 01

1шт.

0-30

87603703

WATER PUMP

1шт.

See Figure(s) 02-030-01 01

1шт.

0-30

87603703R

REMAN-WATER PUMP

CX470C CRAWLER EXCAVATOR TIER 4 (NA) (9/11-)

1шт.

0-30

87603703C

CORE-WATER PUMP

Return Number

1шт.

0-32

87603799

BRACKET

1шт.

See Figure(s) 02-032-01 01

1шт.

0-60

87386231

SENSOR

1шт.

See Figure(s) 04-060-01 01

1шт.

1

426196A1

THERMOSTAT

2шт.

2

84476986

HOUSING

1шт.

12

87601344

BOLT

5шт.

20

426198A1

O-RING

2шт.

30

84390343

SPACER

2шт.

49

NSS

NOT SOLD SEPARAT

1шт.

59

288565A1

GASKET

1шт.

65

84292926

GASKET

1шт.

67

84477595

DUCT

1шт.

101

NSS

NOT SOLD SEPARAT

1шт.

112

87730431

PLUG

1шт.

134b

84387728

CLIP,26mm - 41.5mm

2шт.

257

289737A1

SENSOR

1шт.

300

84477576

GASKET

4шт.

302

NSS

NOT SOLD SEPARAT

1шт.
