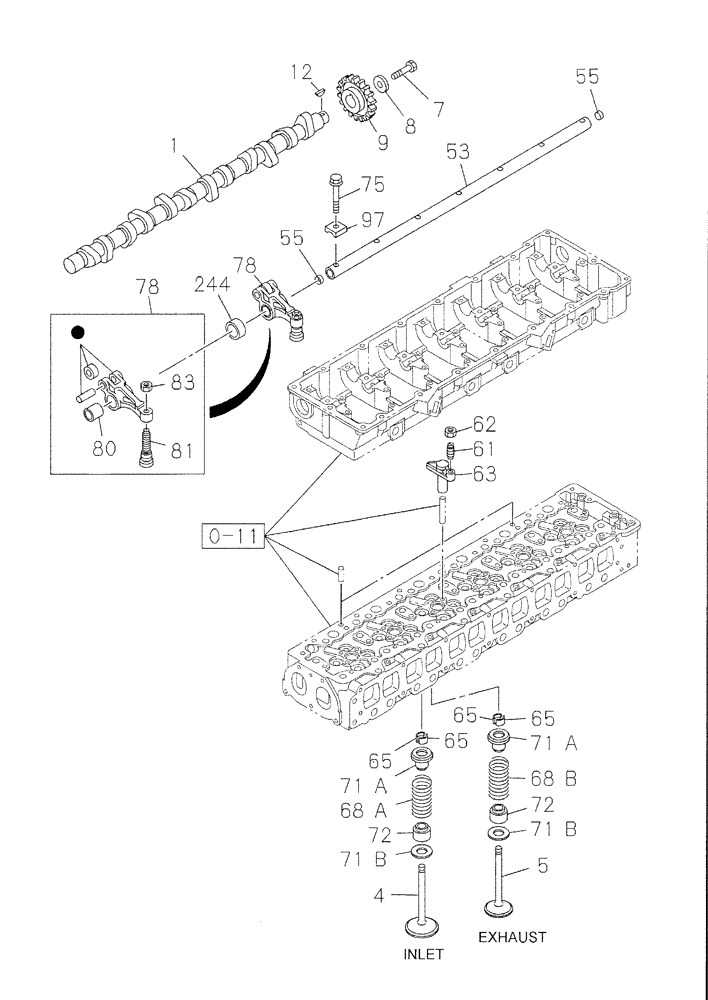

Запчасти Case CX470C (02-014-01[01]) - CAMSHAFT - VALVE MECHANISM (01) - ENGINE

0-11

84160077

CYLINDER HEAD

1шт.

See Figure(s) 02-011-02-01

1шт.

0-11

47607709R

REMAN-CYLINDER HEAD

Complete Reman Cylinder Head With Valves

1шт.

0-11

47607709C

CORE-CYLINDER HEAD

Return Number

1шт.

0-11

47828375R

REMAN-CYLINDER HEAD

Complete Reman Cylinder Head With Valves

1шт.

0-11

47828375C

CORE-CYLINDER HEAD

Core Return Number

1шт.

1

87601817

CAMSHAFT

1шт.

4

87601883

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

5

87601885

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

7

71455153

SCREW

1шт.

8

289838A1

WASHER

1шт.

9

87601886

GEAR

1шт.

12

71455150

KEY

1шт.

53

87601894

SHAFT

1шт.

55

359866A1

CUP

2шт.

61

72109575

ADJUSTMENT SCREW,Hex, 3/8" - 16 x 1", Gr 5

12шт.

62

71455176

NUT

12шт.

63

87601930

BRIDGE

12шт.

65

355173A1

SEAT, VALVE

48шт.

68a

87601934

VALVE SPRING

Inlet

12шт.

68b

87601938

VALVE SPRING

Exhaust

12шт.

71a

438045A1

SEAT, VALVE

24шт.

71b

438053A1

SEAT, VALVE

24шт.

72

87601940

SEAL

24шт.

75

87601942

BOLT

7шт.

78

87601943

LEVER

6шт.

Inlet, Include(s) 80, 81, 83

1шт.

78

87601946

LEVER

6шт.

Exhaust, Include(s) 80, 81, 83

1шт.

80

87601947

BUSHING

12шт.

81

87601950

ADJUSTMENT SCREW,Hex, M12 x 1.25 x 75mm, Cl 8.8

12шт.

83

87596395

NUT

12шт.

97

87601952

BRACKET

7шт.

244

87601985

TUBE

6шт.
