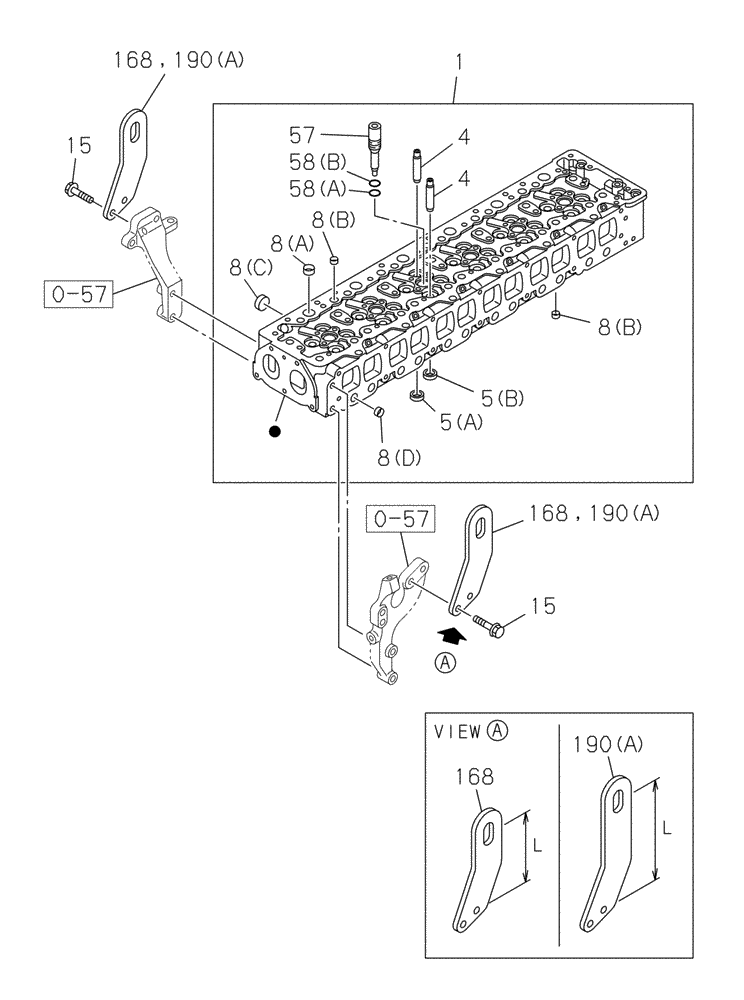

Запчасти Case CX470C (02-011-01[01]) - CYLINDER HEAD (01) - ENGINE

0-57

84477704

BRACKET

1шт.

See Figure(s) 02-057-01-01

1шт.

See Figure(s) 02-057-01 01

1шт.

1

84160077

CYLINDER HEAD

1шт.

Include(s) 4, 5A, 5B, 8A - 8D, 57, 58A, 58B

1шт.

1

47607709R

REMAN-CYLINDER HEAD

Complete Reman Cylinder Head With Valves

1шт.

1

47607709C

CORE-CYLINDER HEAD

Return Number

1шт.

1

47828375R

REMAN-CYLINDER HEAD

Complete Reman Cylinder Head With Valves

1шт.

1

47828375C

CORE-CYLINDER HEAD

Return Number

1шт.

4

87601204

VALVE GUIDE

24шт.

5a

87601209

SEAL

12шт.

5b

87601223

SEAL

12шт.

8a

289076A1

CUP

6шт.

8b

359866A1

CUP

12шт.

8c

355144A1

RING

6шт.

8d

71455287

PLUG

12шт.

15

87597701

BOLT

4шт.

57

87384351

NOZZLE HOLDER

6шт.

58a

72110172

SEAL

6шт.

58b

87601336

GASKET

6шт.

168

87601464

HANGER

2шт.

190a

84477692

HANGER

2шт.
