/ / / / / / / / (09-030-00[01]) - CAB - WINDSHIELD - OPENING ROOF - SUN VISOR

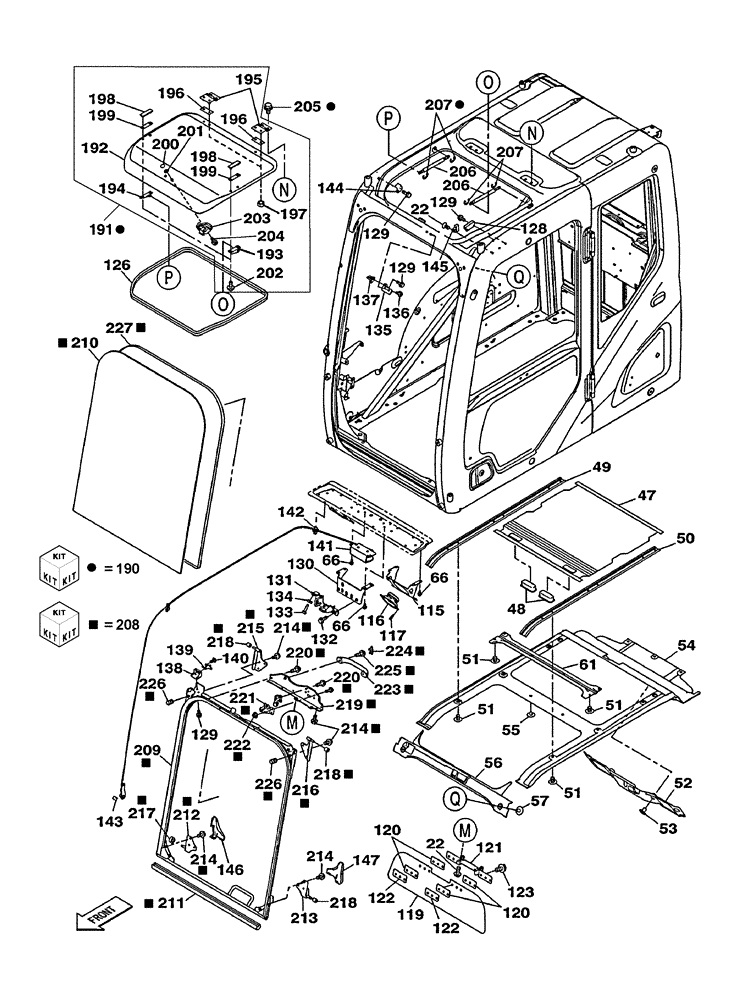

Запчасти Case CX470C (09-030-00[01]) - CAB - WINDSHIELD - OPENING ROOF - SUN VISOR (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS
![Схема запчастей Case CX470C - (09-030-00[01]) - CAB - WINDSHIELD - OPENING ROOF - SUN VISOR (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS](https://partsell.ru/storage/images/casece/506085.png)
208
208
214
49
208
117
220
218
208
214
134
61
193
218
221
137
209
199
208
51
141
66
208
190
208
54
51
129
208
120
226
208
120
207
208
130
200
201
219
211
208
147
208
139
208
208
133
138
224
227
212
122
56
198
208
203
214
129
192
129
121
208
223
51
197
57
207
225
208
66
210
222
116
190
53
196
51
131
206
208
198
195
216
143
48
22
208
55
208
208
140
146
115
66
145
196
194
206
215
202
217
142
218
119
214
128
208
144
213
135
136
126
220
129
22
122
123
132
190
52
204
50
208
208
199
190
205
191
226
47
22
KHN2682
SCREW,Spcl
5шт.
47
KHN14580
SUN VISOR
1шт.
48
KHN14590
HANDLE
2шт.
49
KHN25480
SLIDE
1шт.
50
KHN25500
SLIDE
1шт.
51
KHN14570
SCREW
6шт.
52
KHN25530
SUPPORT
1шт.
53
KHN25920
CLIP
8шт.
54
KHN25420
PAD
1шт.
55
KHN14640
CLIP
11шт.
56
KHN25520
SUPPORT
1шт.
57
KHN25890
CLIP
2шт.
61
KHN14680
BRACKET
1шт.
66
KHN18870
BOLT
20шт.
115
KHN25650
BRACKET, SUPPORTING
2шт.
116
KHR3366
SPEAKER
2шт.
117
KHN2716
SCREW,Spcl
8шт.
119
KHN17380
SUN VISOR
1шт.
120
KHN17390
RUBBER PAD
4шт.
121
KHN17400
HINGE
1шт.
122
KHN17410
PLATE
2шт.
123
KHN2682
SCREW,Spcl
6шт.
126
KHN25580
SEAL
1шт.
128
KHN15940
STOP LOCK
1шт.
129
KHN15690
BOLT
7шт.
130
KHN25300
BRACKET, SUPPORTING
1шт.
131
KHN25380
STRIKER
STRIKER
1шт.
132
KHN18930
BOLT
2шт.
133
KHN15990
STOP LOCK
1шт.
134
KHN19030
NUT
1шт.
135
KHN25640
BRACKET, SUPPORTING
1шт.
136
KHN2756
BOLT,Spcl
2шт.
137
KHN25670
STRIKER
STRIKER
1шт.
138
KHN25660
BRACKET, SUPPORTING
1шт.
139
KHN26000
SWITCH
1шт.
140
KHN25960
SCREW
2шт.
141
KHN25700
SPRING
, complete with cable
1шт.
142
161381A1
COLLAR
1шт.
143
KHN15980
STOP LOCK
2шт.
144
KHN25540
CAP
1шт.
145
KHN25550
CAP
1шт.
146
KHN16220
COVER
1шт.
147
KHN16230
COVER
1шт.
190
KHN13700
HATCH
1шт.
Include(s) 191 - 207
1шт.
191
KHN15180
HATCH
1шт.
Include(s) 192 - 204
1шт.
192
KHN15190
CAB GLASS
1шт.
193
KHN15200
BRACKET
1шт.
194
KHN15210
BRACKET
1шт.
195
KHN15220
HINGE
2шт.
196
KHN15230
RETAINER
2шт.
197
KHN15240
SPECIAL NUT
4шт.
198
KHN15250
RETAINER
2шт.
199
KHN15260
PLATE
2шт.
200
KHN15270
RETAINER
2шт.
201
KHN15280
RETAINER
2шт.
202
KHN15290
SCREW
4шт.
203
KHN15300
HANDLE
1шт.
204
KHN15310
SCREW
2шт.
205
KHN15320
BOLT,Spcl
4шт.
206
KHN2827
GAS STRUT
2шт.
207
KHN2828
CIRCLIP
4шт.
208
KHN25210
WINDOW ASSY
1шт.
Include(s) 209 - 227
1шт.
209
KHN25220
WINDOW FRAME
1шт.
210
KHN25620
WINDSHIELD
1шт.
211
KHN25750
SEAL
1шт.
212
KHN15670
STAY
1шт.
213
KHN25770
STAY
1шт.
214
KHN15690
BOLT
13шт.
215
KHN25680
STAY
1шт.
216
KHN25690
STAY
1шт.
217
KHN15800
ROLLER
1шт.
218
KHN25600
ROLLER
3шт.
219
KHN25280
COVER
1шт.
220
KHN28230
BOLT
5шт.
221
KHN25410
LOCK
1шт.
222
KHN25980
NUT
2шт.
223
KHN25870
HANDLE
1шт.
224
KHN25880
CAP
2шт.
225
KHN25770
STAY
2шт.
226
KHN15830
STOP LOCK
2шт.
227
KHN19340
SEAL
1шт.
