(09-018-00[01]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING

Запчасти Case CX470C (09-018-00[01]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS

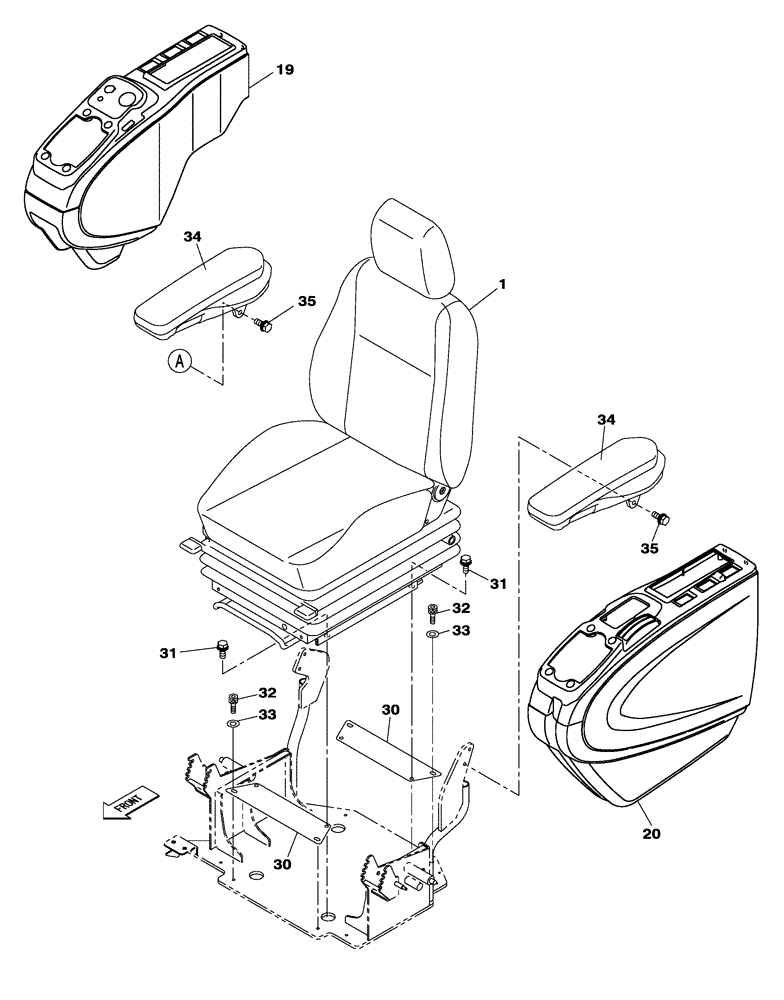

Схема запчастей Case CX470C - (09-018-00[01]) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (05.1) - UPPERSTRUCTURE CHASSIS/ATTACHMENTS
30
32
35
20
19
33
30
31
34
33
34
32
1
35
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87706000

DRIVER SEAT

Air Suspension

1шт.

See Figure(s) 09-022-00 01

1шт.

1

87724818

DRIVER SEAT

Mechanical, See Figure 09-022-01 01

1шт.

30

KHN13531

PLATE

2шт.

31

166350A1

BOLT

4шт.

32

108R008Y020R

HEX SOC SCREW

4шт.

32

KHN26570

BOLT

CX250C LR

4шт.

33

892-11008

LOCK WASHER,8mm ID

4шт.

33

KHN26580

WASHER

CX250C LR

4шт.

34

KHN27560

ARMREST

2шт.

35

KHN17270

BOLT,Spcl

4шт.

35

KHN13540

BOLT,Spcl

CX250C LR

2шт.

19

REF

INSTRUCTION

Right

1шт.

See Figure(s) 09-020-00 01

1шт.

20

REF

INSTRUCTION

Left

1шт.

See Figure(s) 09-019-00 01

1шт.

Выбрано товаров: 16
