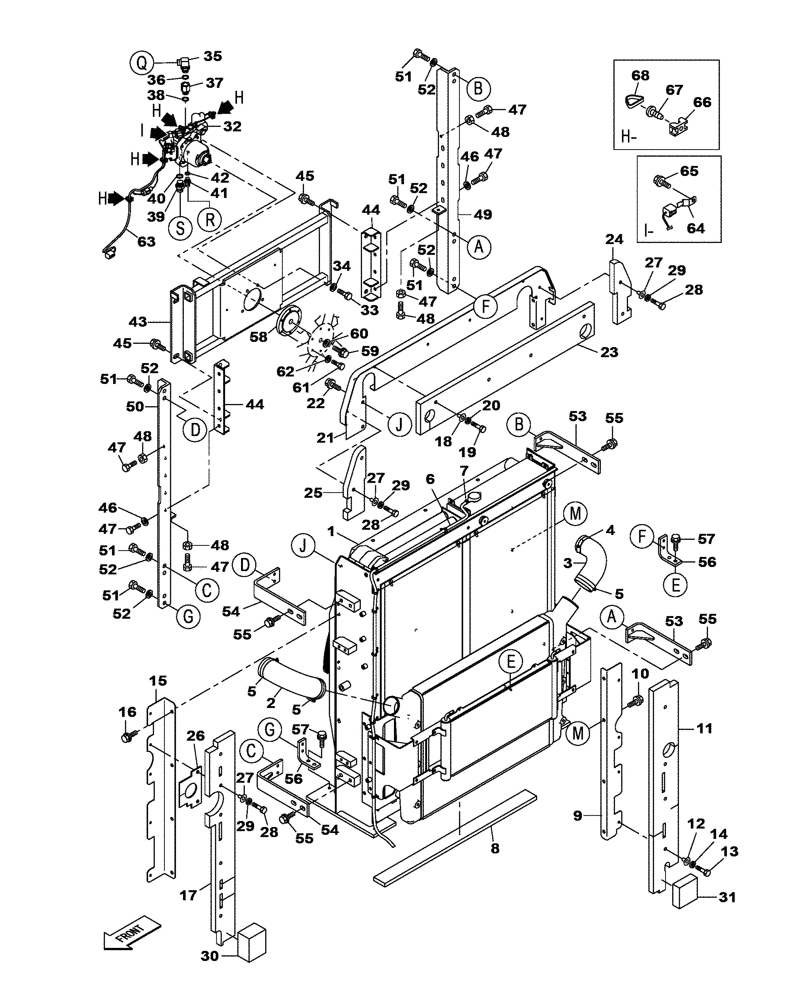

Запчасти Case CX470C (02-004-00[01]) - ENGINE WATER CIRCUIT (01) - ENGINE

1

KTH12651

RADIATOR

1шт.

2

KTH10100

AIR FLEXIBLE

1шт.

3

KTH11990

LARGE HOSE

HOSE,LARGE

1шт.

4

164968A1

COLLAR

1шт.

5

KHH0411

COLLAR

3шт.

6

KHH13860

HOSE

1шт.

7

165951A1

CLAMP

1шт.

8

KTH12160

SEAL PROTECTION

1шт.

9

KTH12710

BRACKET

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

11

KTH12170

SEAL PROTECTION

1шт.

12

KHH0358

RETAINER

4шт.

13

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

15

KTH12720

BRACKET

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

17

KTH12180

SEAL PROTECTION

1шт.

18

KHH0358

RETAINER

4шт.

19

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

4шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

21

KTH12240

BRACKET

1шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

23

KTH12190

SEAL PROTECTION

1шт.

24

KTH12200

SEAL PROTECTION

1шт.

25

KTH12210

SEAL PROTECTION

1шт.

26

KTH12730

INSULATING PLATE

1шт.

27

KHH0358

RETAINER

9шт.

28

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

9шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

30

KTH11200

NOISE PROTECTION

1шт.

31

KTH11210

NOISE PROTECTION

1шт.

32

KWH0018

ELECTRIC MOTOR

1шт.

See Figure(s) 02-004-02 01

1шт.

33

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

34

150811A1

WASHER

4шт.

35

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

1шт.

Include(s) 36

1шт.

36

154503A1

O-RING

1шт.

37

159198A1

ADAPTER

1шт.

Include(s) 37

1шт.

38

154503A1

O-RING

1шт.

39

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

1шт.

Include(s) 40

1шт.

40

154503A1

O-RING

1шт.

41

KRJ1231

ADAPTER

1шт.

Include(s) 42

1шт.

42

154475A1

O-RING

1шт.

43

KTH12300

BRACKET

1шт.

44

KTH10590

SUPPORT

2шт.

45

166348A1

BOLT

4шт.

46

150811A1

WASHER

8шт.

47

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

48

162R012VR

NUT

4шт.

49

KTH12311

BRACKET

Was pn KTH12310

1шт.

50

KTH12320

BRACKET

1шт.

51

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

52

150811A1

WASHER

12шт.

53

KTH10620

SUPPORT

2шт.

54

KTH12330

BRACKET

2шт.

55

166348A1

BOLT

8шт.

56

KTH10650

SUPPORT

2шт.

57

166352A1

BOLT

4шт.

58

KSH10590

COVER

1шт.

59

KWH0045

BOLT

1шт.

60

KWH0046

WASHER

1шт.

61

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

62

KEH0114

WASHER

6шт.

63

KWR10010

WIRE HARNESS

1шт.

64

KHR3748

COLLAR

1шт.

65

167518A1

BOLT

1шт.

66

150860A1

COLLAR

4шт.

67

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

4шт.

68

KHH0142

BAND

4шт.
