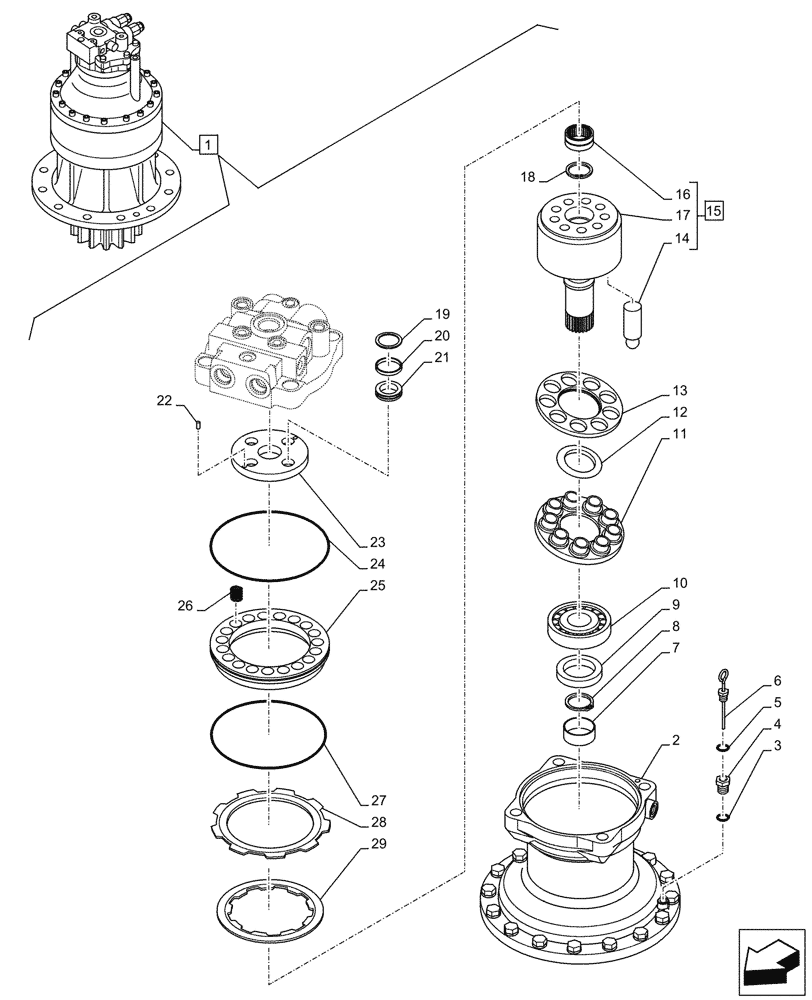

Запчасти Case CX470C (08-220-00[02]) - SWING HYDRAULIC MOTOR (07) - HYDRAULIC SYSTEM

1

KTC0171

MOTOR, HYDRAULIC

ASSY, Incl 2 - 29

1шт.

See also Figure 08-220-00(01), 08-220-00(03)

1шт.

1

KTC0171R

REMAN-HYD MOTOR

ASSY, Incl 2 - 29, CX470C CRAWLER EXCAVATOR, TIER 4 (NA) (9/11-)

1шт.

See also Figure 08-220-00(01), 08-220-00(03)

1шт.

1

KTC0171C

CORE-MOTOR HYDRAULIC

ASSY, Incl 2 - 29, Return Number

1шт.

See also Figure 08-220-00(01), 08-220-00(03)

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

LE026670

O-RING

1шт.

4

LR00895

CAP

1шт.

5

LE026340

O-RING

1шт.

6

LM00074

GAUGE

1шт.

7

LE01004

RING

1шт.

8

LA00840

SNAP RING

1шт.

9

LAM0080

OIL SEAL

1шт.

10

LB00798

TAPERED BEARING

1шт.

11

LF00038

CAM

1шт.

12

LR00891

SPRING SEAT

1шт.

13

LR00890

PLATE

1шт.

14

NSS

NOT SOLD SEPARAT

Piston, Incl in 15

9шт.

15

LJ018880

CYLINDER BLOCK

ASSY, Incl 14, 16, 17

1шт.

16

LB00800

NEEDLE BEARING

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 15

1шт.

18

LA00841

SNAP RING

1шт.

19

LG00443

SPRING

4шт.

20

LE026350

RING

4шт.

21

LB00799

BUSHING

4шт.

22

LJ00986

JACK PISTON

2шт.

23

LZM0334

PLATE

1шт.

24

LE026330

O-RING

2шт.

25

LJ00985

JACK PISTON

1шт.

26

156082A1

SPRING

19шт.

27

LE026320

O-RING

1шт.

28

LR00893

PLATE

2шт.

29

LR00892

PLATE

2шт.
