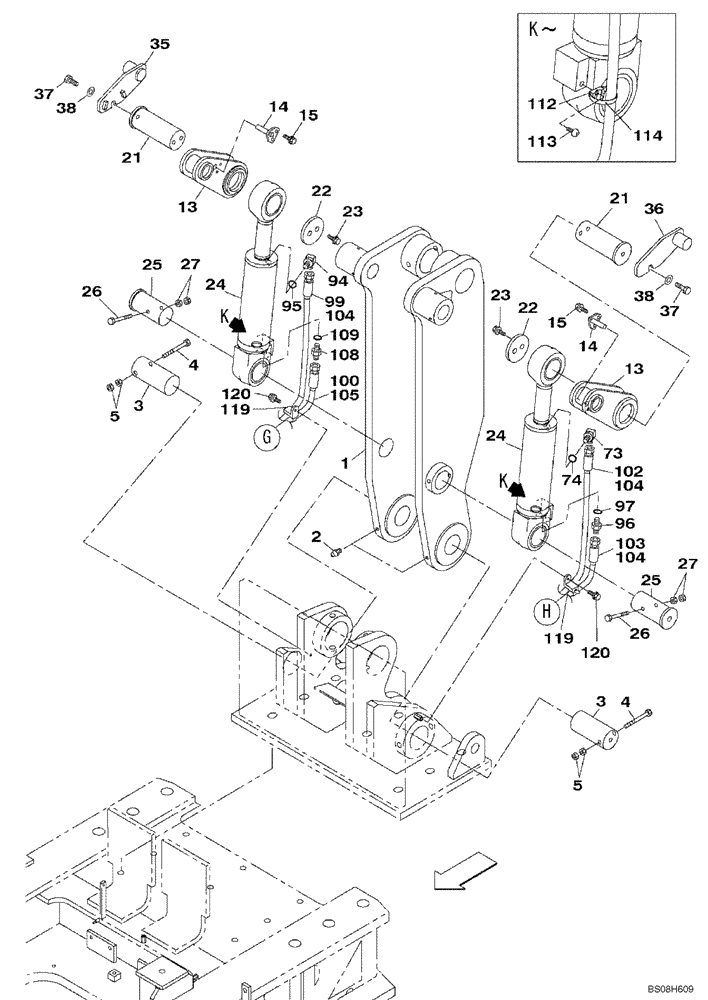

Запчасти Case CX470C (08-060-03[01]) - COUNTERWEIGHT REMOVAL SYSTEM (07) - HYDRAULIC SYSTEM

1

KTB0941

ARM

1шт.

2

153630A1

LUBE NIPPLE

2шт.

3

KTB0951

PIN

80x175

2шт.

4

514-1034

BOLT,Hex, M16 x 1.5 x 180mm, Cl 10.9

M16x180

2шт.

5

829-13416

NUT,M16 x 1.5, Cl 10

M16

4шт.

13

KTB0945

LINK

2шт.

14

KUB0159

PLATE

2шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

21

KTB0946

HEADED PIN

80x203

2шт.

22

KTB0959

PLATE

2шт.

23

166373A1

BOLT,Sems, M16 x 40mm

M16x40

4шт.

24

KTB0937

CYLINDER ASSY.

See Fig. 08-33

2шт.

25

KTB0947

HEADED PIN

75x158

2шт.

26

132R012Y140R

BOLT,M12 x 140mm

M12x140

2шт.

27

172R012VR

NUT

M12

4шт.

35

KTB0971

PLATE

1шт.

36

KTB0972

PLATE

1шт.

37

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

M16x40

2шт.

38

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

73

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incd. 74

1шт.

74

154475A1

O-RING

1шт.

94

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incd. 95

1шт.

95

154475A1

O-RING

1шт.

96

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incd. 97

1шт.

97

154475A1

O-RING

1шт.

99

KTJ11240

HYDRAULIC HOSE

9 x 1450 mm

1шт.

100

KTJ11190

HYDRAULIC HOSE

9 x 1050 mm

1шт.

102

KAJ3813

HYDRAULIC HOSE,9.50 mm ID x 1900.00 mm

1шт.

103

KTJ11200

HYDRAULIC HOSE

9 x 1500 mm

1шт.

104

158063A1

PLASTIC-RUBBER TUBE

19 x 1300mm

3шт.

105

158061A1

PLASTIC-RUBBER TUBE

19 x 800mm

1шт.

108

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incd. 109

2шт.

109

154475A1

O-RING

1шт.

112

150860A1

COLLAR

2шт.

113

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

114

150496A1

MOUNTING CLIP

2шт.

119

KHR2581

CLAMP

2шт.

120

KHJ1215

BOLT,Spcl

M8x25

2шт.
