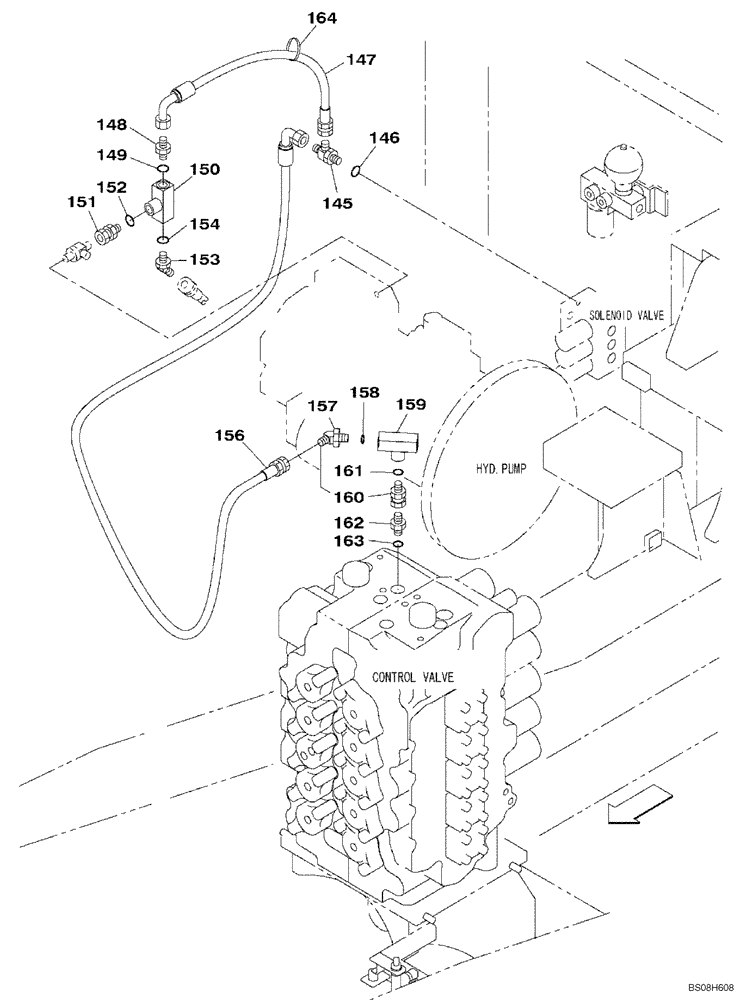

Запчасти Case CX470C (08-060-02[01]) - COUNTERWEIGHT REMOVAL SYSTEM (07) - HYDRAULIC SYSTEM

145

159497A1

TEE

Incd. 146

1шт.

146

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

147

152563A1

BRACKET

1шт.

148

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incd. 149

1шт.

149

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

150

KHJ17090

VALVE PRESSURE RELIE

1шт.

151

162654A1

HYD CONNECTOR

Incd. 152

1шт.

152

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

153

150933A1

ELBOW

Incd. 154

1шт.

154

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

156

159711A1

HOSE,3250.00 mm

1шт.

157

150933A1

ELBOW

Incd. 158

1шт.

158

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

159

KHJ17090

VALVE PRESSURE RELIE

1шт.

160

162654A1

HYD CONNECTOR

Incd. 161

1шт.

161

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

162

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incd. 163

1шт.

163

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

164

150496A1

MOUNTING CLIP

250mm

1шт.
